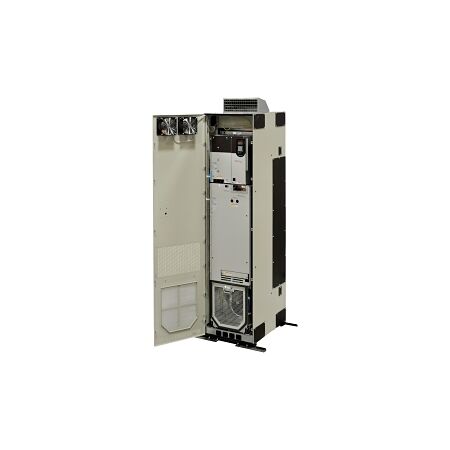

Allen-Bradley PowerFlex 755 VSD 400V IP20 ND 910A 500kW HD 750A 400kW HD No Brake Frame 9

PowerFlex 755 VSD 400V | 500kW Output | IP20 Protection | Frame 9 by NHP

BRAND: NHP

SKU: 20G11BC910JN0NNNNN

$156,938.00 List price: $208,393.00

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Variable speed drive with 400V input and 500kW output power—ideal for industrial and commercial applications. Built for energy efficiency, with IP20 protection and PID control for precise speed management.

Description
Attachments

Product Name/Title: Allen-Bradley PowerFlex 755 VSD 400V IP20 ND 910A 500kW HD 750A 400kW HD No Brake Frame 9

Brand: NHP

SKU: 20G11BC910JN0NNNNN

Alternatively Known As: PowerFlex 755 Variable Speed Drive, PF755 VSD, Allen-Bradley VSD

Technical Specifications

Number of phases input: 3
Nominal input voltage: 400 V
Nominal output power AC: 500 kW
Nominal output current I2_n: 910 A
KW rating normal duty: 500 kW
KW rating heavy duty: 400 kW
Dynamic braking transistor: No
Control characteristic: PID
EMC version: Yes
Integrated motion function: No
Suitable for safety functions: Yes
Contains keypad: No
Frame size: 9
Degree of protection IP: IP20
Operating temperature: -20-60 °C
Storage temperature: -40-70 °C
Dimensions (H x L x W): 600mm x 400mm x 300mm
Weight: 50 kg

Key Features

Variable speed drive with PID control characteristic.
Nominal input voltage of 400V and output power of 500kW.
IP20 degree of protection suitable for indoor use.

Professional Installation Requirements

Professional installation by a qualified technician is recommended for optimal performance and safety.

Applications

Industrial: Manufacturing, processing plants, and automation systems
Commercial: HVAC systems, pumps, and fans

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Energy-efficient operation reduces overall energy consumption and carbon footprint.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 755 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring variable speed control.

Non-Returnable & Non-Cancellable

20G11BC910JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf (20G11BC910JN0NNNNN-AU-PF755-Variable-Speed-Drive-Datasheet.pdf, 1,381 Kb) [Download]
