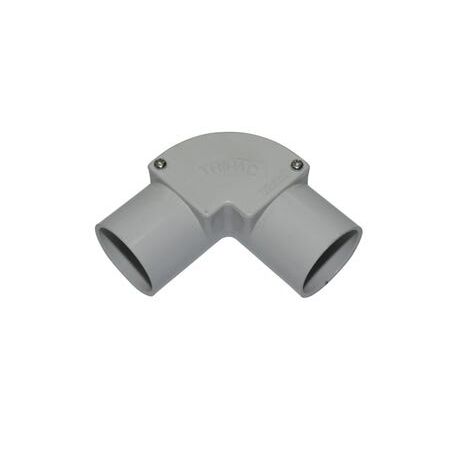

PVC Inspection Elbow 20mm UV Stabilised Screwed Grey Cabac
20mm PVC inspection elbow with a screwed inspection window designed for accessible cable routing and maintenance within conduit systems. Manufactured from medium-duty UV stabilised grey PVC for reliable indoor and outdoor performance. Features dimensions of 30mm x 50mm x 30mm and complies with AS/NZS 3000 Wiring Rules for electrical installations. Review the information below for installation guidance, applications, and compliance details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Medium-duty grey PVC
- Size: 20mm
- UV stabilised for outdoor durability
- Screwed inspection window for easy wiring access
- Compatible with PVC cement for secure connections
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- PVC elbow fitting with a screwed inspection window for easy wiring access and inspection
- Fits neatly into corners, optimizing space in conduit installations
- Compatible with PVC cement for secure and reliable connections
- Made from medium-duty grey PVC, UV stabilised for durability
- BEP certified for environmental compliance
Professional Installation Requirements
- Professional installation by a qualified electrician or licensed tradesperson is recommended to ensure compliance with electrical standards and secure connections.
Applications
- Cable management in residential, commercial, and industrial conduit installations
- Wiring access and inspection in electrical conduit systems
- Optimizing space in conduit corners
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- BEP certified for environmental compliance
- Durable PVC material reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Cabac Fitting Inspection Elbow PVC 20mm Grey is available now for immediate purchase. Ideal for electrical conduit installations requiring easy wiring access and inspection.
FAQ
Q: What is the purpose of the screwed inspection window on this elbow?
A: The screwed inspection window provides easy access for wiring inspection and cable maintenance within conduit systems.
Q: Is this inspection elbow suitable for outdoor installations?
A: Yes, it is manufactured from UV stabilised medium-duty grey PVC for improved outdoor durability.
Pair with a PVC inspection tee where conduit systems require additional access points for cable installation and maintenance.
A PVC full conduit saddle can assist with securing conduit runs adjacent to inspection fittings and bends.
Install with a PVC plain to screwed adaptor when conduit systems terminate into switchboards or threaded enclosures.
