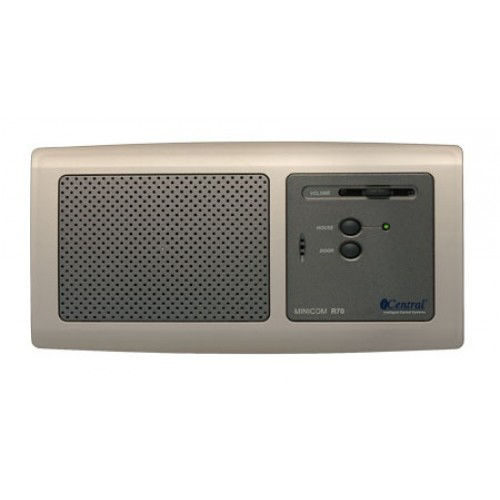

R70 Minicom Room Station Bronze iCentral
iCentral R70 Minicom room station features a bronze finish in the 70 Series range. Ideal for Minicom intercom systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Minicom R70 Room Station, iCentral 70 Series Room Station, Bronze Intercom Room Station
Technical Specifications
- Series: Minicom 70 Series
- Finish: Bronze
- System Capacity: Up to 4 combined room and door stations
- Operating Voltage: 12–13.8 V DC
- Communication: Balanced audio communication lines
- Controls: House call, door answering and volume control
- Chime: Selectable chime functions via compatible Minicom door station
- Compatibility: Backward compatible with previous Minicom series
- Manufacture: Designed and made in Australia
- SKU: 106-970
- Dimensions (H x L x W): 130mm x 30mm x 265mm
- Weight: 0.5 kg
Key Features
- Bronze-finish room station for iCentral Minicom intercom systems
- Supports communication between room stations and door stations
- Provides front-door answering and optional electric lock release control
- Expandable with any combination of compatible Minicom room and door stations
- Suitable for installations with up to four stations in total
- Recessed wall-mount installation
- Compatible with existing previous-series Minicom systems
Professional Installation Requirements
- Installation requires wall cut-out work, low-voltage DC wiring and connection to the Minicom system. Installation should be completed by a suitably qualified intercom or low-voltage technician in accordance with the manufacturer’s installation manual and applicable wiring requirements.
Applications
- Residential home intercom systems
- Small multi-room intercom installations
- Front-door visitor communication
- Intercom systems requiring electric gate or door release control
- Replacement or extension of compatible Minicom installations
Standards & Compliance
- AS/NZS 3000:2018: Relevant extra-low-voltage installation and wiring requirements may apply to the 12–13.8 V DC intercom system; product-specific certification was not published.
- AS/NZS 62368.1:2026: Potentially relevant safety standard for audio and communication equipment; product-specific compliance was not independently verified.
Environmental Benefits
- Low-voltage operation reduces energy use compared with mains-powered room equipment
- Durable wall-mounted construction can extend service life and reduce replacement waste
- Repair or replacement of an individual room station can avoid replacing the complete intercom system
Warranty Information
iCentral intercom products are covered by a two-year warranty against defects from the date of purchase under the iCentral/Ness warranty statement located for this product division. Return freight, removal, reinstallation and damage caused by misuse or incorrect installation may be excluded.
Available Now
Available through iCentral/Ness and authorised Australian distributors, subject to distributor stock availability.
