Trade Discount 25%
R70 Minicom Room Station White iCentral

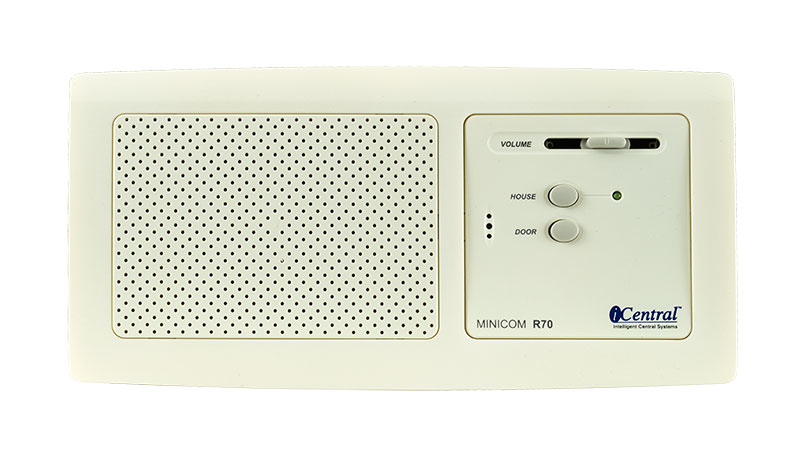

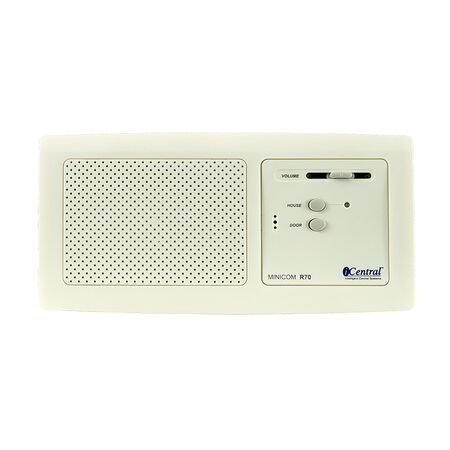

iCentral R70 Minicom room station features a white finish in the 70 Series range. Ideal for Minicom intercom systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Minicom R70 Room Station, iCentral Minicom Indoor Station, White Minicom Intercom Handset
Technical Specifications
- System: iCentral Minicom intercom system
- Finish: White
- Supply Voltage: 12–13.8 VDC
- System Capacity: Up to four room and door stations combined
- Functions: House call, door answering and optional electric lock release
- Chime Selection: 10 programmable door chime options
- Wiring: Five-conductor system wiring or compatible CAT5 conductors
- Fascia Dimensions: 265 W x 130 H mm
- Recess Dimensions: 205 W x 95 H x 30 D mm
- Manufacture: Designed and made in Australia
- Dimensions (H x L x W): 130mm x 265mm x 30mm
- Weight: 0.45 kg
Key Features
- White finish for residential and light-commercial interiors
- Supports communication between room stations and door stations
- House and door call controls
- Adjustable room-station volume control
- Compatible with previous-series Minicom systems
- Supports optional electric door or gate release
- Designed for flush installation into timber-frame or cavity-brick walls
Professional Installation Requirements
- Installation should be completed by a suitably qualified installer. The station requires low-voltage system wiring, correct polarity and connection to a compatible Minicom power supply; install wiring in accordance with AS/NZS 3000:2018 where applicable.
Applications
- Residential intercom systems
- Small offices and commercial premises
- Multi-room Minicom installations
- Internal communication with front-door or gate stations
- Intercom systems requiring optional electric lock release
Standards & Compliance
- AS/NZS 3000:2018 may apply to the associated electrical installation and wiring
- AS/NZS 3820 may apply to the essential safety requirements for the associated low-voltage electrical equipment; product-specific compliance was not located
Environmental Benefits
- Operates from a low-voltage 12–13.8 VDC supply, supporting lower operating energy than mains-powered room equipment
- Durable fixed installation can reduce replacement and electronic waste over the product service life
- Replaceable room-station component allows servicing of the intercom system without replacing the complete installation
Warranty Information
iCentral intercom products are covered for 12 months from purchase against defective components; iCentral warranty documentation also states that an additional year may be available by registering the warranty. Return freight and exclusions may apply.
Available Now
Available through iCentral, Valet/Ness channels and authorised Australian distributors, subject to current range and stock status.
