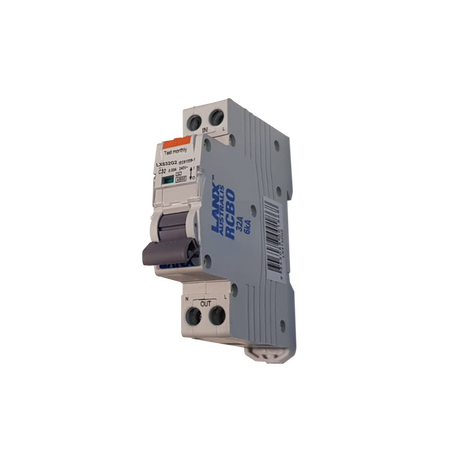

RCBO 1P 32A 6kA Breaking Capacity 30mA Sensitivity Type A LANX
A 32A single pole RCBO with 6kA breaking capacity and 30mA residual current for electrical circuit protection. It provides short circuit and overload dual-protection performance with Type A protection. Suitable for residential electrical distribution boards, commercial electrical installations, and industrial electrical systems requiring circuit protection, with AS/NZS 3000 – Wiring Rules (Electrical Installation) compliance. Review the technical specifications and installation requirements below before fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 32A
- Residual Current: 30mA
- Breaking Capacity: 6kA
- Pole: Single
- Type: A
- Protection: Short circuit and overload dual-protection
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- Fine and unique appearance
- Short circuit and overload dual-protection performance
- Convenient and reliable installation mode
- Rated short-circuit breaking capacity: 6kA
- Rated Current: 32A
- Type A RCBO
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with safety standards and proper operation.
Applications
- Residential electrical distribution boards
- Commercial electrical installations
- Industrial control panels requiring RCBO protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Lanx 32A Single Pole RCBO Type A is available now for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial electrical systems.
FAQ
Q: What are the key specifications of this RCBO?
A: It has a 32A rated current, 30mA residual current, 6kA breaking capacity, single pole configuration, and Type A protection.
Q: What applications is this RCBO suitable for?
A: It is listed for residential electrical distribution boards, commercial electrical installations, and industrial electrical systems requiring circuit protection.
For another single pole circuit protection option, the 20A RCBO provides 30mA residual current and 6kA breaking capacity.
The 25A RCBO provides another single pole protection option with 30mA residual current and 6kA breaking capacity.
For a lower current option, the 16A RCBO is also available with 30mA residual current and 6kA breaking capacity.
