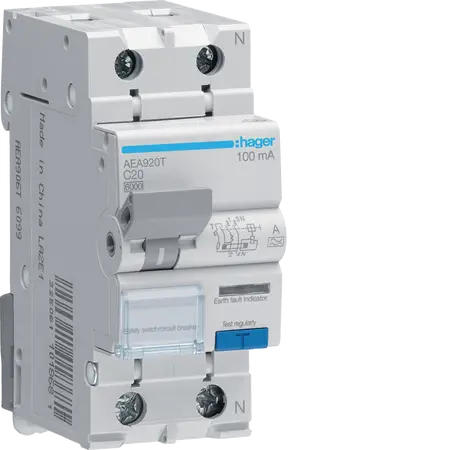

RCBO 1P+N 20A 6kA Breaking Capacity 100mA C Curve 500V IP20 Hager
Hager 1-pole + neutral 20A RCBO features 6kA breaking capacity, 100mA residual protection and C-curve tripping. Ideal for final subcircuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 20 A
- Rated residual operating current: 100 mA
- Rated short-circuit breaking capacity: 6 kA
- Rated insulation voltage: 500 V
- Operating temperature: -25 to 40 °C
- Number of modules: 2
- Type of connection: Screw terminal
- Dimensions (H x L x W): 83mm x 68mm x 35mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for single-phase applications.
- Rated current of 20A with a residual current of 100mA.
- High breaking capacity of 6kA for enhanced safety.
- IP20 ingress protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed to improve electrical safety and reduce the risk of electrical fires.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1P+N 6kA C-20A 100mA is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
