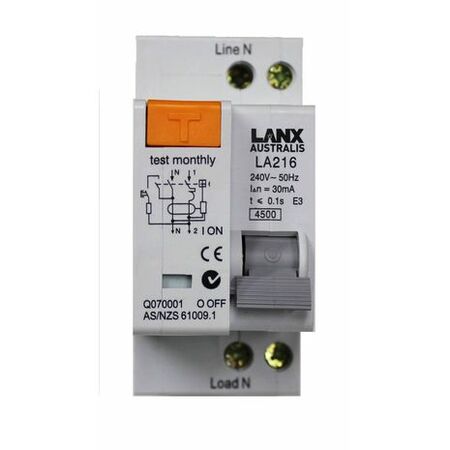

RCBO 2P 16A 4.5kA Breaking Capacity Type A Short Circuit Protection LANX
A 2-pole 16A RCBO with 4.5kA short circuit breaking capacity for electrical circuit protection. It provides Type A RCD protection and IP20 protection for electrical installations. Suitable for residential and commercial electrical circuits, with protection against electrical equipment insulation faults and AS/NZS 3000 – Wiring Rules (Electrical Installation) compliance. Review the technical specifications and professional installation requirements below before fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Two Pole
- Rated short-circuit breaking capacity: 4.5kA
- Rated Current: 16A
- Degree of Protection: IP20
- Type A
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.3 kg
Key Features
- Two Pole design
- Rated short-circuit breaking capacity of 4.5kA
- Rated current of 16A
- Degree of Protection: IP20
- Type A RCBO for enhanced protection
Professional Installation Requirements
- Professional installation by a licensed electrician is required to ensure compliance with safety standards and proper operation.
Applications
- Residential electrical circuits
- Commercial electrical installations
- Protection of electrical equipment from insulation faults
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Prevents electrical faults that could cause energy waste or hazards
- Enhances electrical safety reducing risk of fire and equipment damage
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Lanx Two Pole 16A RCD/MCB RCBO 4.5KA Type A is available now for immediate purchase. Ideal for residential and commercial electrical protection applications.
FAQ
Q: What are the key specifications of this RCBO?
A: It is a 2-pole 16A RCBO with 4.5kA short circuit breaking capacity, IP20 protection, and Type A RCD protection.
Q: What applications is this RCBO suitable for?
A: It is listed for residential electrical circuits, commercial electrical installations, and protection of electrical equipment from insulation faults.
For another 2-pole protection option, the 10A RCBO provides 4.5kA breaking capacity and Type A RCD protection.
The 20A RCBO provides another circuit protection option with 30mA Type A detection and 6kA breaking capacity.
For another single pole protection option, the 25A RCBO provides 30mA residual current and 6kA breaking capacity.
