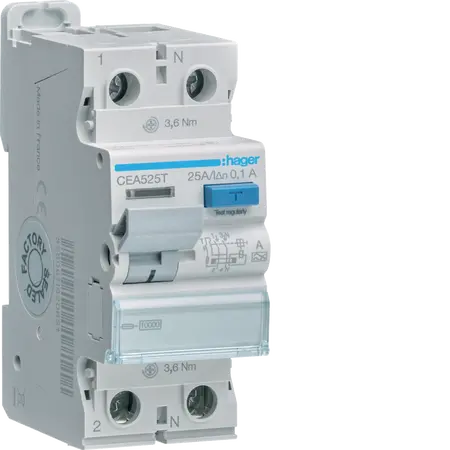

RCCB 1P+N 25A 100mA | High Breaking Capacity | DIN Rail Mount by Hager

BRAND: :hager

SKU: CEA525T

$84.90 List price: $108.60

+ −

30 Days Return Delivery Options

RCCB with 1P+N configuration, 25A rated current, and 100mA residual current—ideal for residential and commercial safety. Built for reliable protection, with high breaking capacity and DIN rail mounting.

Description
Attachments

Product Name/Title: RCCB 1P+N 25A 100mA A

Brand: Hager

SKU: CEA525T

Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB

Technical Specifications

Rated operational voltage: 240V
Frequency: 50-60Hz
Dielectric strength: 2kV
Rated impulse withstand voltage: 4000V
Total power loss under IN: 1.77W
Electric endurance: 10,000 cycles
Mechanical operations: 20,000 cycles
Ingress Protection (IP) class: IP20
Dimensions (H x L x W): 85mm x 70mm x 36mm
Weight: 0.5 kg

Key Features

1P+N configuration for single-phase applications.
Rated current of 25A and residual operating current of 100mA.
High breaking capacity of 1.25 kA.
Suitable for DIN rail mounting.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
General: Any installation requiring residual current protection

Standards & Compliance

Complies with AS/NZS 61008 for residual current devices.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.
Commitment to improving environmental performance and reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 1P+N 25A 100mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

CEA525T (CEA525T, 141 Kb) [Download]

(PEP_HAGER_HAGE-00148-V02.02-EN_02092022.pdf, 381 Kb) [Download]

reach_declaration_CEA525T4.pdf (reach_declaration_CEA525T4.pdf, 103 Kb) [Download]

rohs_declaration_CEA525T4.pdf (rohs_declaration_CEA525T4.pdf, 104 Kb) [Download]

(ID1_ID_6LE003036AD_AU.pdf, 1,134 Kb) [Download]
