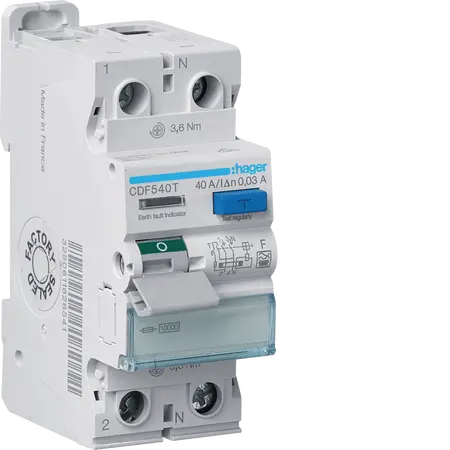

RCCB 1P+N 40A 30mA | DIN Rail Mount | IP20 Protection by Hager

BRAND: :hager

SKU: CDF540T

$367.90 List price: $470.50

+ −

30 Days Return Delivery Options

RCCB 1P+N with 40A rated current and 30mA residual operating current—ideal for residential and commercial safety. Built for DIN rail mounting, with IP20 protection for reliable electrical installations.

Description
Attachments

Product Name/Title: RCCB 1P+N 40A 30mA F

Brand: Hager

SKU: CDF540T

Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB

Technical Specifications

Type of pole: 1P+N
Rated current: 40A
Rated residual operating current: 30mA
Breaking capacity: 1.25 kA
Rated insulation voltage: 500V
Dielectric strength: 2 kV
Rated impulse withstand voltage: 4000V
Number of modules: 2
Residual current type: F
Total power loss under IN: 3.31W
Electric endurance: 10,000 cycles
Mechanical operations: 20,000
Dimensions (H x L x W): 85mm x 70mm x 36mm
Weight: 0.5 kg

Key Features

Rated current of 40A and residual operating current of 30mA.
Suitable for DIN rail mounting.
IP20 ingress protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Homes, apartments, and small buildings
Commercial: Offices and retail spaces
General: Any installation requiring residual current protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

RoHS compliant, contributing to reduced environmental impact.
Commitment to improving environmental performance by reducing carbon footprint.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 1P+N 40A 30mA F is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.

CDF540T (CDF540T, 163 Kb) [Download]

(PEP_HAGER_HAGE-00148-V02.02-EN_02092022.pdf, 381 Kb) [Download]

reach_declaration_CDF540T4.pdf (reach_declaration_CDF540T4.pdf, 103 Kb) [Download]

rohs_declaration_CDF540T4.pdf (rohs_declaration_CDF540T4.pdf, 104 Kb) [Download]

(ID1_ID_6LE003036AD_AU.pdf, 1,134 Kb) [Download]
