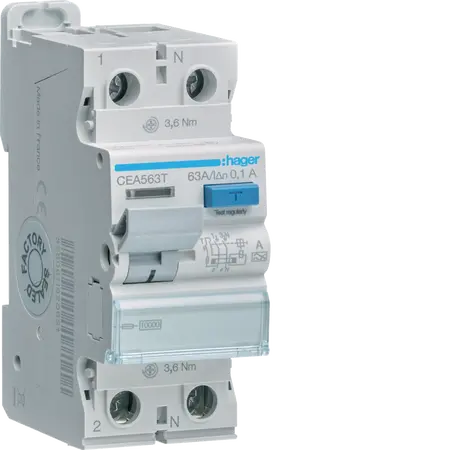

RCCB 1P+N 63A 100mA | High Breaking Capacity | IP20 Rated by Hager

BRAND: :hager
SKU: CEA563T
$106.80 List price: $136.50
+
RCCB with 1P+N configuration and 63A current rating—ideal for residential, commercial, and light industrial applications. Built for effective residual current protection, with high breaking capacity and IP20 rating.

Product Name/Title: RCCB 1P+N 63A 100mA A

Brand: Hager

SKU: CEA563T

Alternatively Known As: Residual Current Circuit Breaker, RCCB, RCD, ELCB

Technical Specifications
  • Rated operational voltage: 240V
  • Rated insulation voltage: 500V
  • Dielectric strength: 2kV
  • Rated impulse withstand voltage: 4000V
  • Frequency: 50-60Hz
  • Number of modules: 2
  • Ingress Protection (IP) class: IP20
  • Electric endurance: 10,000 cycles
  • Mechanical operations: 20,000 cycles
  • Dimensions (H x L x W): 85mm x 70mm x 36mm
  • Weight: 0.5 kg
Key Features
  • 1P+N configuration for effective residual current protection.
  • Rated current of 63A and residual operating current of 100mA.
  • High breaking capacity of 1.25 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 61008 for residual current devices.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCCB 1P+N 63A 100mA A is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

CEA563T (CEA563T, 142 Kb) [Download]

(PEP_HAGER_HAGE-00148-V02.02-EN_02092022.pdf, 381 Kb) [Download]

reach_declaration_CEA563T4.pdf (reach_declaration_CEA563T4.pdf, 103 Kb) [Download]

rohs_declaration_CEA563T4.pdf (rohs_declaration_CEA563T4.pdf, 104 Kb) [Download]

(ID1_ID_6LE003036AD_AU.pdf, 1,134 Kb) [Download]
