RCCB 1P+N 63A 30mA | High Breaking Capacity | IP20 Rated by Hager
RCCB with 1P+N configuration, 63A rated current, and 30mA residual operating current—ideal for residential, commercial, and light industrial applications. Built for safety with high breaking capacity and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

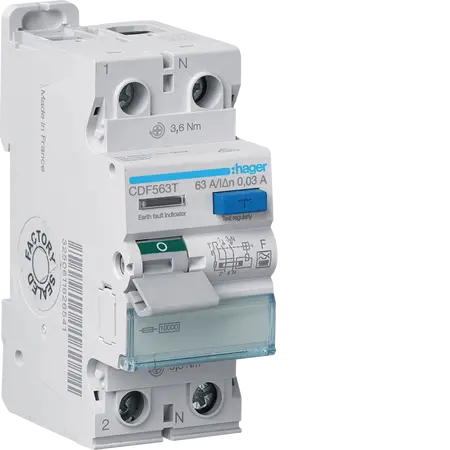

Product Name/Title: RCCB 1P+N 63A 30mA F
Brand: Hager
SKU: CDF563T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Type of pole: 1P+N
- Rated current: 63 A
- Rated residual operating current: 30 mA
- Rated operational voltage: 240 V
- Frequency: 50 Hz
- Ingress Protection (IP) class: IP20
- Total power loss under IN: 6.64 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000 cycles
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for effective residual current protection.
- Rated current of 63A and residual operating current of 30mA.
- High breaking capacity of 1.25 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 1P+N 63A 30mA F is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
