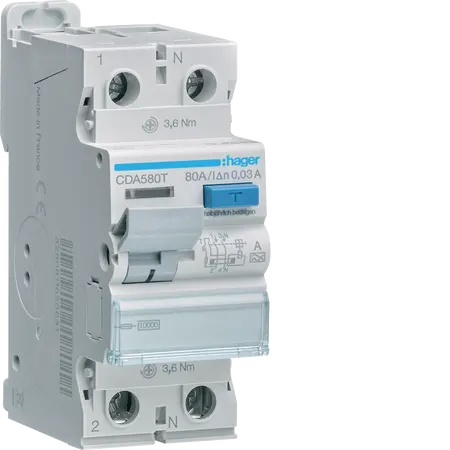

RCCB 1P+N 80A 30mA | DIN Rail | IP20 Protection by Hager
RCCB with 80A rated current and 30mA residual operating current—ideal for residential and commercial electrical installations. Built for safety with DIN Rail installation and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 1P+N 80A 30mA A
Brand: Hager
SKU: CDA580T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Type of pole: 1P+N
- Rated current: 80 A
- Rated residual operating current: 30 mA
- Breaking capacity: 1.25 kA
- Rated conditional short-circuit current: 10 kA
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Number of modules: 2
- Residual current type: A
- Total power loss under IN: 10.90 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.5 kg
Key Features
- Rated current of 80A and residual operating current of 30mA.
- Suitable for DIN Rail installation.
- IP20 ingress protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring residual current protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 1P+N 80A 30mA is available now for immediate purchase. Ideal for residential and commercial electrical installations.
