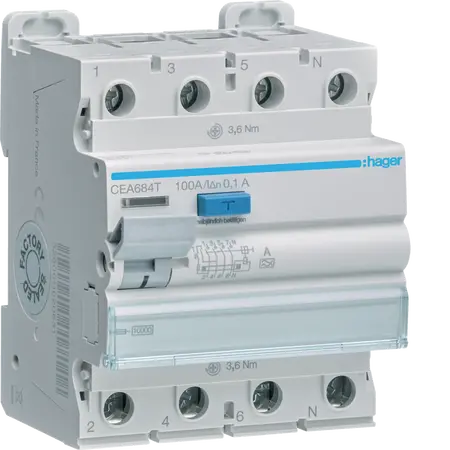

RCCB 3P+N 100A 100mA | DIN Rail Mount | IP20 by Hager
RCCB with 3P+N configuration, 100A current, and 100mA sensitivity—ideal for residential and commercial safety. Built for enhanced protection, with DIN rail mounting and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 3P+N 100A 100mA A
Brand: Hager
SKU: CEA684T
Alternatively Known As: Residual Current Circuit Breaker, RCD, Safety Switch, RCCB
Technical Specifications
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000 cycles
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.5 kg
Key Features
- 3P+N configuration for enhanced safety.
- Rated current of 100A and residual operating current of 100mA.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 100A 100mA A is available now for immediate purchase. Ideal for residential and commercial applications, ensuring safety and compliance.
