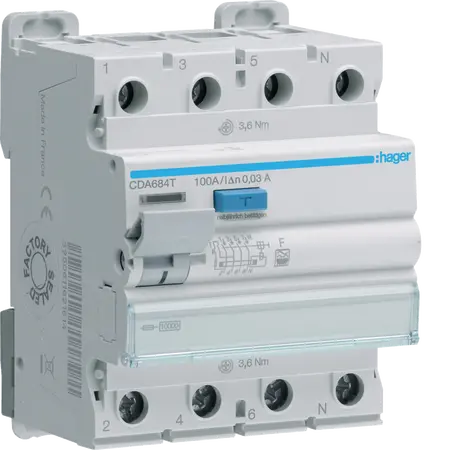

RCCB 3P+N 100A 30mA | High Breaking Capacity | IP20 Rated by Hager
RCCB with 3P+N configuration and 100A, 30mA rating—ideal for residential and commercial safety. Built for enhanced protection, with high breaking capacity and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 3P+N 100A 30mA A
Brand: Hager
SKU: CDA684T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 500 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 Hz
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Total power loss under IN: 21.48 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 1.5 kg
Key Features
- 3P+N configuration for enhanced safety and performance.
- Rated current of 100A and residual operating current of 30mA.
- High breaking capacity of 1.25 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 100A 30mA is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
