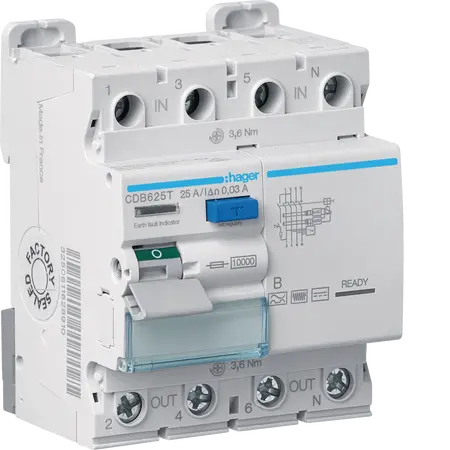

RCCB 3P+N 25A 30mA | High Breaking Capacity | IP20 Rated by Hager
RCCB with 3P+N configuration, 25A current, and 30mA sensitivity—ideal for residential, commercial, and industrial safety. Built for reliable protection, with high breaking capacity and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 3P+N 25A 30mA B
Brand: Hager
SKU: CDB625T
Alternatively Known As: Residual Current Circuit Breaker, Safety Switch, RCD, RCCB
Technical Specifications
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 400 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Frequency: 50 Hz
- Number of modules: 4
- Ingress Protection (IP) class: IP20
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000 cycles
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 0.5 kg
Key Features
- 3P+N configuration for three-phase and neutral protection.
- Rated current of 25A and residual current of 30mA.
- High breaking capacity of 0.80 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 61008 for residual current devices.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 25A 30mA B is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
