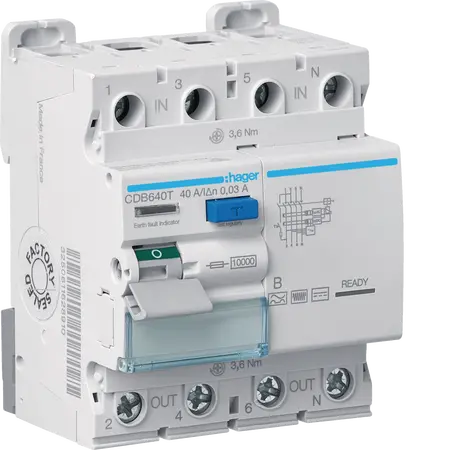

RCCB 3P+N 40A 30mA | IP20 Indoor Use | DIN Rail Mount by Hager
RCCB with 3P+N configuration, 40A rated current, and 30mA residual current—ideal for residential and commercial safety. Built for enhanced protection, with IP20 rating and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCCB 3P+N 40A 30mA B
Brand: Hager
SKU: CDB640T
Alternatively Known As: Residual Current Circuit Breaker, RCD, Safety Switch, RCCB
Technical Specifications
- Rated operational voltage: 240 - 415 V
- Rated insulation voltage: 400 V
- Dielectric strength: 2 kV
- Rated impulse withstand voltage: 4000 V
- Total power loss under IN: 6.77 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000 cycles
- Nominal tightening torque: 3.60 Nm
- Dimensions (H x L x W): 85mm x 70mm x 72mm
- Weight: 1.0 kg
Key Features
- 3P+N configuration for enhanced safety
- Rated current of 40A and residual operating current of 30mA
- IP20 ingress protection for indoor use
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 3P+N 40A 30mA B is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
