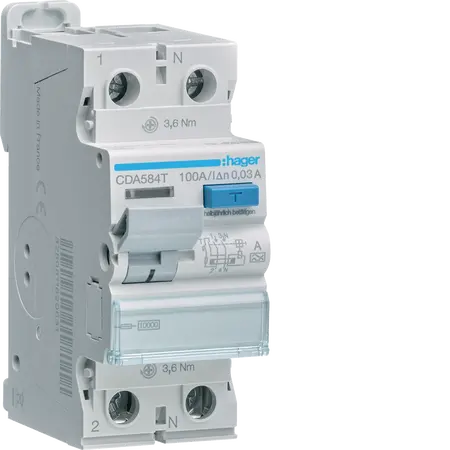

RCD Safety Switch 1P+N 100A 30mA IP20 240V DIN Rail Hager
Hager RCD Safety Switch 1P+N 100A features IP20 protection, 240V rated. Suited to switchboard safety switch upgrades.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type of pole: 1P+N
- Rated current: 100 A
- Rated residual operating current: 30 mA
- Breaking and opening capacity: 1.25 kA
- Rated conditional short-circuit current: 10 kA
- Rated operational voltage: 240 V
- Frequency: 50 Hz
- Number of modules: 2
- Residual current type: A
- Total power loss under IN: 13.89 W
- Electric endurance: 10,000 cycles
- Mechanical operations: 20,000
- Dimensions (H x L x W): 85mm x 70mm x 36mm
- Weight: 0.5 kg
Key Features
- Rated current of 100A and residual operating current of 30mA.
- Suitable for DIN Rail installation.
- IP20 ingress protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCCB 1P+N 100A 30mA A is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
