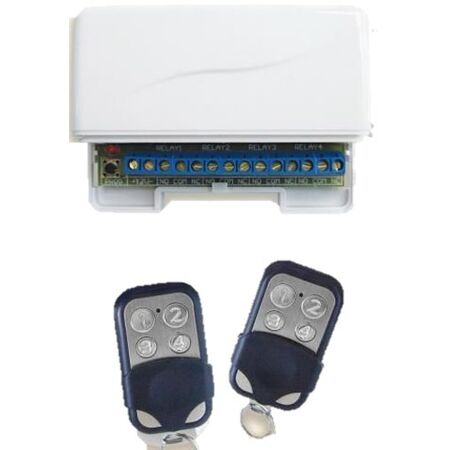

Receiver with 2 Remote FOBs SPDT Expandable to 500 Remotes Activor
Activor Receiver with 2 Remote FOBs SPDT Expandable to 500 Remotes — 4-relay outputs, SPDT; 1A 24VDC 120VAC, 9-15VDC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Output: 4-relay outputs
- Relay Rating: SPDT; 1A 24VDC/120VAC
- Operating Voltage: 9-15VDC
- Current: 8-40mA
- Capacity: 25 remotes standard, expandable to 500
- Size: 90mm (L) x 60mm (W) x 28mm (H)
- Dimensions (H x L x W): 28mm x 90mm x 60mm
- Weight: 0.1 kg
Key Features
- 4-relay outputs with SPDT configuration
- Relay 3 and 4 programmable for latching or delay operation
- Keeloq rolling code for enhanced security
- Standard capacity of 25 remotes, expandable to 500
- Includes 2 remote FOBs with CR2032 batteries
- Mounting plate included for quick installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with alarm systems and safe electrical connections.
Applications
- Security systems for arm/disarm/panic functions
- Control of electric devices via alarm panels
- Residential and commercial alarm system integration
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 9-15VDC operating voltage
- Long-lasting remote FOB batteries reduce waste
Warranty Information
1 year warranty from the date of purchase covering manufacturing defects.
Available Now
The ACTIVOR 4-Relay Receiver with 2 FOBs is available for immediate purchase, ideal for enhancing security system control in residential and commercial applications.
