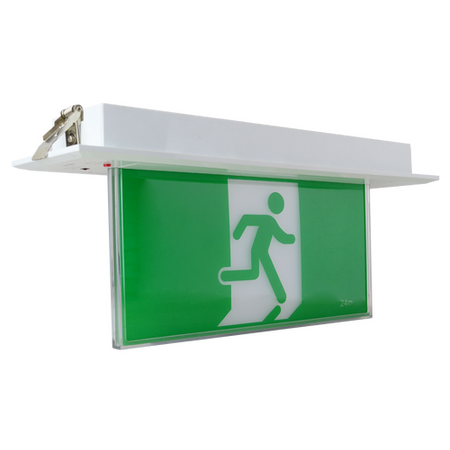

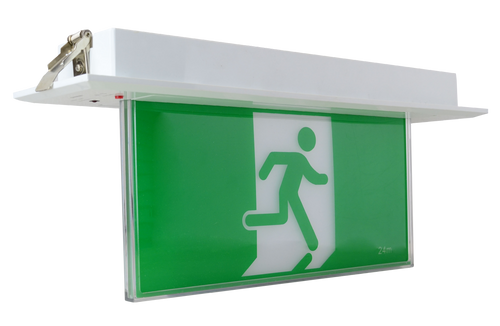

Recessed Blade Exit Sign | 240V | Lithium Battery | LED by Lawell Lightning

BRAND: Lawel Lighting
SKU: LWJE1703
$79.80 List price: $104.00
+ −
30 Days Return Delivery Options
Recessed blade exit sign with 240V input and lithium battery—ideal for commercial and public buildings. Built for compliance with AS/NZS 2293.3, featuring a durable polycarbonate body and long-life LED lamp.

Product Name/Title: Recessed Blade Exit

Brand: Lawell Lightning

SKU: LWJE1703

Alternatively Known As: ['LED emergency exit sign', 'Recessed exit blade light', 'Exit sign with lithium battery', 'AS2293 compliant exit light', 'Running man exit sign']

Technical Specifications
  • Input Voltage: 240V
  • Construction: Polycarbonate body with transparent acrylic blade
  • Mounting: Ceiling recessed
  • Operation Mode: Maintained
  • Testing System: Manual test switch
  • Battery: 2200mAh lithium, 3 hour discharge
  • Classification: C0: D12.5, C90: D8
  • Viewing Distance: 24m
  • Lamp: LED, 50,000 hours rated life
  • Operating Temperature: 1°C to 40°C
  • Cutout Size: 430x75mm

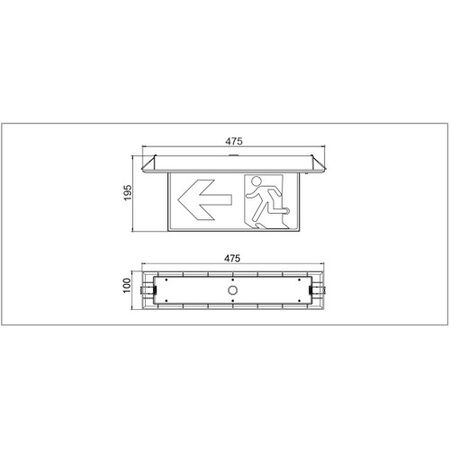

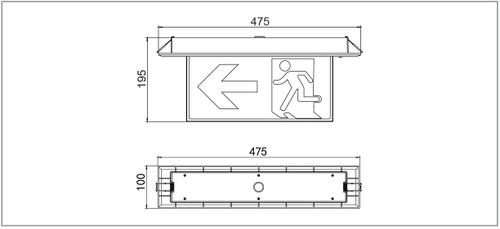

  • Dimensions (H x L x W): 195mm x 100mm x 475mm
  • Weight: 1.56 kg
Key Features
  • Low 3W standby power consumption
  • Supplied with both single and double sided decals (running man pictograph and EXIT)
  • Large terminal block and cable entry for easy installation
  • Durable polycarbonate body with transparent acrylic blade
  • Maintained operation mode
  • Manual test switch for routine testing
  • 2200mAh lithium battery with 3 hour discharge
  • Long-life LED lamp (50,000 hours)
  • 24m viewing distance
  • Cutout size: 430x75mm
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with AS/NZS 2293.3 and local regulations.
Applications
  • Commercial buildings: offices, shopping centres, warehouses
  • Public facilities: hospitals, schools, airports
  • Residential complexes: apartments, hotels
  • Any premises requiring compliant emergency exit signage
Standards & Compliance
  • Complies with AS/NZS 2293.3 for emergency escape lighting and exit signs
Environmental Benefits
  • Low energy consumption reduces electricity usage
  • Long-life LED reduces waste and maintenance
  • Lithium battery technology is more environmentally friendly than traditional batteries
Warranty Information

3 year warranty covering manufacturing defects and battery performance.

Available Now

Available for immediate purchase. Ideal for commercial, public, and residential buildings requiring compliant emergency exit signage.

E1703%20Datasheet.pdf (E1703_Datasheet.pdf, 409 Kb) [Download]

E1703%20ies.pdf (E1703_ies.pdf, 115 Kb) [Download]
