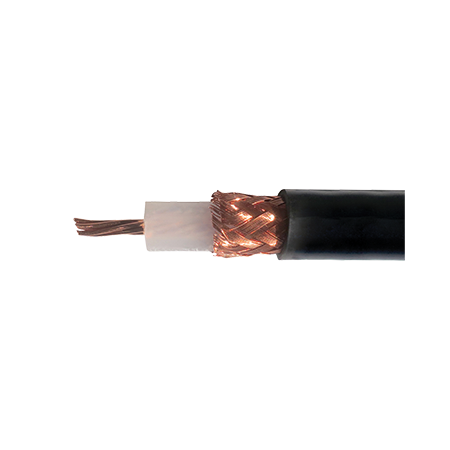

RG213 Coaxial Cable 50 Ohm Single Braided 10mm Cable (Cut to Length)

RG213 Coaxial Cable 50 Ohm | Single Braided | 10mm Diameter by Matchmaster

BRAND: Matchmaster

SKU: 56MM-E213-1

$7.50 List price: $9.10

+ −

30 Days Return Delivery Options

RG213 coaxial cable with 50 Ohm impedance and single braided shield—ideal for telecommunications and broadcasting. Built for optimal signal transmission, with versatile 10mm diameter for easy installation.

Description
Attachments

Product Name/Title: RG213 Coaxial Cable 50 Ohm Single Braided 10mm Cable (Cut to Length)

Brand: Matchmaster

SKU: 56MM-E213-1

Alternatively Known As: RG213 Coax Cable, 50 Ohm Radio Cable, Single Braided Coaxial Cable, CB Radio Cable, VHF UHF Coax Cable

Technical Specifications

Center Conductor: Twisted annealed copper wire 7/0.752mm
Insulation: Solid polyethylene, 7.25mm diameter
Shield: Annealed bare copper wire braid 8/24/0.18mm
Jacket: Non-contaminating PVC, extruded, 10.3mm diameter
Cable weight: 14.7kg per 100m
Max recommended pulling tension: 83kg
Minimum bend radius: 127mm
Operating temperature: -40° to +80°C
Attenuation varies with frequency, e.g., 2.2 dB/100m at 30MHz, 24.8 dB/100m at 1000MHz
Nominal inductance: 0.255 uH/m
Nominal delay: 4.69 ns/m
Peak power: 16kW
Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
Weight: 0.147 kg

Key Features

50Ω nominal impedance
Velocity of propagation: 66%
Cut to length in 1m increments
Frequency range: 30-1000MHz
Capacitance: 90pF/m
Single braided shield with annealed bare copper wire
Non-contaminating PVC jacket
Operating temperature range: -40° to +80°C
Maximum operating voltage: 3700V RMS

Professional Installation Requirements

Professional installation by a qualified technician or electrician is recommended to ensure proper termination and optimal performance.

Applications

CB Radio systems
VHF and UHF radio systems
Amateur radio
Base radio antenna stations
Computer networking with longer cable runs

Standards & Compliance

Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres

Environmental Benefits

Durable PVC jacket reduces environmental waste by extending cable lifespan
Cut to length option minimizes excess cable waste

Warranty Information

Standard manufacturer warranty applies. Please refer to Matchmaster warranty terms for details.

Available Now

The Matchmaster RG213 Coaxial Cable 50 Ohm Single Braided 10mm Cable is available now for immediate purchase. Ideal for radio communication and networking applications requiring reliable signal transmission.

Brochure (56mm-e213-1_brochure.pdf, 239 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
