RG6 Quad-shield Coaxial Cable Reel 100m | F-type Connectors | 75 Ohm | High Performance by Matchmaster
RG6 quad-shield coaxial cable with 100m length and F-type connectors—ideal for television and networking. Built for enhanced signal protection, with high performance for digital and analog transmissions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

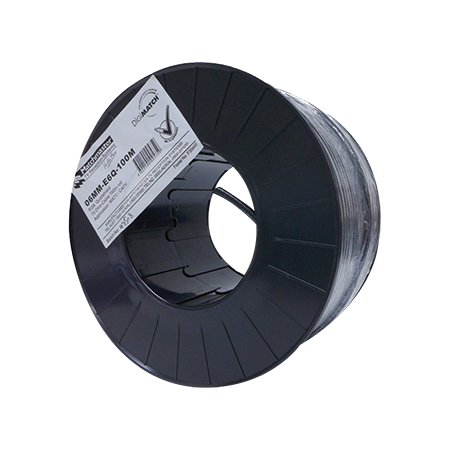

Product Name/Title: 100m RG6 Quad-shield Coaxial Cable Reel
Brand: Matchmaster
SKU: 06MM-E6Q-100M
Alternatively Known As: RG6 Quad Shield Cable, 75 Ohm Coaxial Cable, Satellite Coax Cable, TV Coax Cable, Foxtel Approved Coaxial Cable
Technical Specifications
- Inner Conductor: Copper Clad Steel Wire, Diameter 1.02±0.01 mm
- Insulation: Physically Foamed PE, Diameter 4.57±0.15 mm

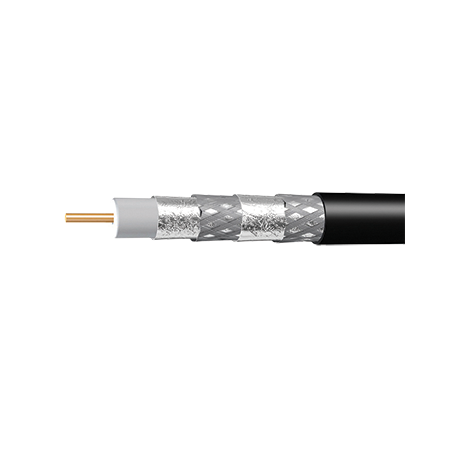

- Outer Conductor: Four shielding layers including bonded Al/PET/Al tape and Al-Mg Alloy Wire Braid
- Jacket Material: FR PVC or PVC, Diameter 7.54±0.20 mm
- Bending Radius: Single 35 mm, Typical 70 mm
- Pulling Strength: 200 N
- Adhesion Force: >20 N
- Impedance: 75±3 Ω
- DCR Inner Conductor: 102.0 Ω/km
- DCR Outer Conductor: 19.1 Ω/km
- Capacitance: 54 pF/m
- Propagation Velocity: 82%
- DC Breakdown Voltage: 5.0 kV
- Insulation Resistance: >1×10^4 MΩ•km
- Screening Attenuation: >105 dB @ 5~1000 MHz
- Attenuation: Max 21.49 dB/100m @ 1000 MHz
- Return Loss: ≥20 dB @ 5-3000 MHz
- Operating Temperature: -40 to +70°C
- UL 1581 UV Resistance: 720 hours
- RoHS Compliant (2011/65/EU)
- Dimensions (H x L x W): n/a mm x 100000mm x n/a mm
- Weight: 3.5 kg
Key Features
- Foxtel (F30440) and Optus (4868) approved
- Meter marked cable for ease of installation
- Available in 305m reels, box dispenser, 30m, 50m, and 100m rolls
- RG6 3GHz rated quad-shield 75 Ohm coaxial cable
- >105dB of screening to 1000MHz for maximum signal protection
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal quality and compliance with local regulations.
Applications
- Free to Air TV systems
- Pay TV systems
- Foxtel satellite networks
- Optus cable networks
- Digital TV installations
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable copper-clad steel conductor reduces need for frequent replacements
- Compliant with 2011/65/EU RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 100m RG6 Quad-shield Coaxial Cable Reel is available now for immediate purchase. Ideal for residential and commercial TV and satellite installations.
