RG6 Coaxial Cable 305m Quad-Shield (White) Matchmaster
RG6 quad-shield coaxial cable with 305m length and copper conductor—ideal for RF, satellite, and cable TV installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Inner Conductor: Copper Clad Steel Wire, Diameter 1.02±0.01 mm
- Insulation: Physically Foamed PE, Diameter 4.57±0.15 mm

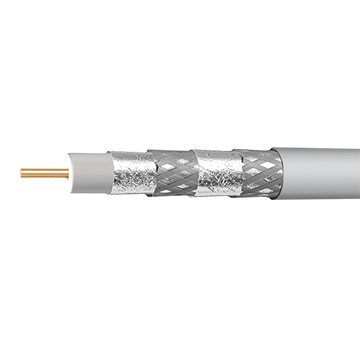

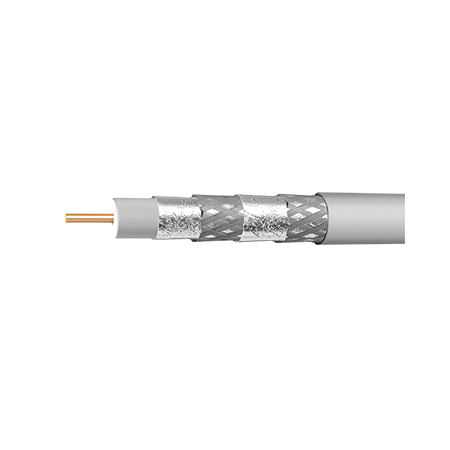

- Outer Conductor: Quad Shield - Bonded Al/PET/Al Tape, Al-Mg Alloy Wire Braid (two layers), Non-bonded Al/PET/Al Tape
- Jacket Material: FR PVC or PVC, Diameter 7.54±0.20 mm
- Bending Radius: Single 35 mm, Typical 70 mm
- Pulling Strength: 200 N
- Adhesion Force: >20 N
- Impedance: 75±3 Ω
- DCR Inner Conductor: 102.0 Ω/km
- DCR Outer Conductor: 19.1 Ω/km
- Capacitance: 54 pF/m
- Propagation Velocity: 82%
- DC Breakdown Voltage: 5.0 kV
- Insulation Resistance: >1×10^4 MΩ•km
- Screening Attenuation: >105 dB @ 5~1000 MHz, >95 dB @ 1000~2000 MHz, >85 dB @ 2000~3000 MHz
- Attenuation varies by frequency, max 38.84 dB/100m at 3000 MHz
- Return Loss: ≥20 dB from 5-3000 MHz
- Dimensions (H x L x W): 7540mm x 305000mm x 7540mm
- Weight: 12 kg
Key Features
- RG6 75 Ohm quad-shield white jacket coaxial cable
- Copper-clad steel centre conductor for durability
- Four shielding layers for maximum signal protection and stability
- 3GHz rated low loss cable
- Meter marked cable for easy measurement
- Approved for Foxtel (F30866) and Optus (4868) pay and digital TV
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure optimal signal quality and compliance with local regulations.
Applications
- Free-to-air TV systems
- Foxtel pay-TV systems
- Indoor surface mounted cables
- White fly leads for discrete installations
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Compliant with 2011/65/EU RoHS directive limiting hazardous substances
- Durable construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now

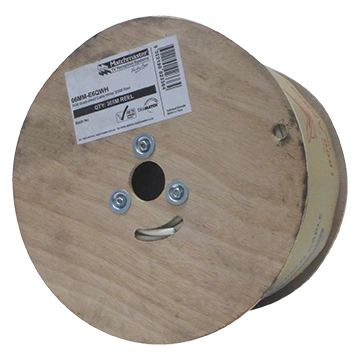

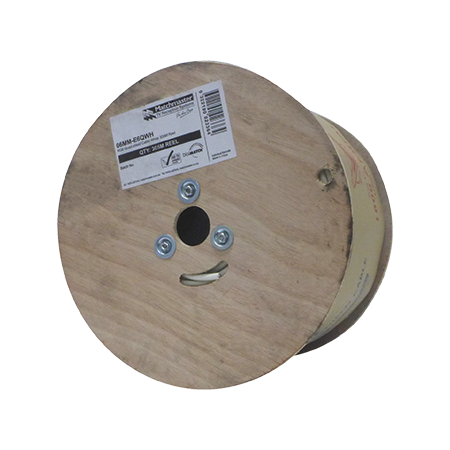

The Matchmaster 305m RG6 White Quad-shield Coaxial Cable Reel is available now for immediate purchase. Ideal for indoor TV and satellite installations requiring discrete white cabling.
