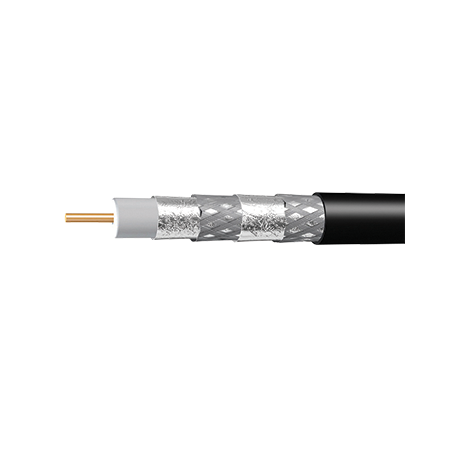

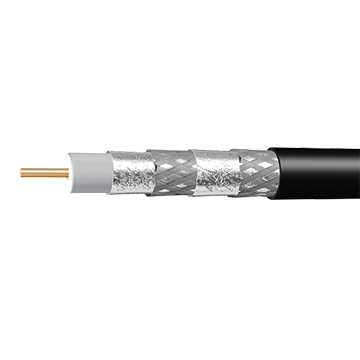

RG6 Quad-Shield Coaxial Cable 305m Dispenser-Box Matchmaster
RG6 quad-shield coaxial cable with 305 meters length and dispenser box—ideal for home theater and digital TV installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Inner Conductor: Copper Clad Steel Wire, 1.00±0.01 mm diameter
- Insulation: Physically Foamed PE, 4.50±0.15 mm diameter
- Outer Conductor: Four shielding layers including bonded Al/PET/Al tape and Al-Mg alloy wire braid
- Jacket Material: FR PVC or PVC, 7.48±0.20 mm diameter
- Bending Radius: Single 35 mm, Typical 70 mm
- Pulling Strength: 200 N
- Adhesion Force: >20 N
- Impedance: 75±3 Ω
- DCR Inner Conductor: 102.0 Ω/km
- DCR Outer Conductor: 19.1 Ω/km
- Capacitance: 54 pF/m
- Propagation Velocity: 82%
- DC Breakdown Voltage: 5.0 kV
- Insulation Resistance: >1×10^4 MΩ•km
- Screening Attenuation: >95 dB @ 5~1000 MHz, >85 dB @ 1000~2000 MHz, >75 dB @ 2000~3000 MHz
- Attenuation varies from 2.35 dB/100m at 5 MHz to 38.84 dB/100m at 3000 MHz
- Return Loss: ≥20 dB from 5-3000 MHz
- Dimensions (H x L x W): 300mm x 300mm x 300mm
- Weight: 12 kg
Key Features
- Quad-shielded RG6 cable rated at 75 Ohms
- Copper-clad steel centre conductor for durability
- 3GHz rated low loss cable

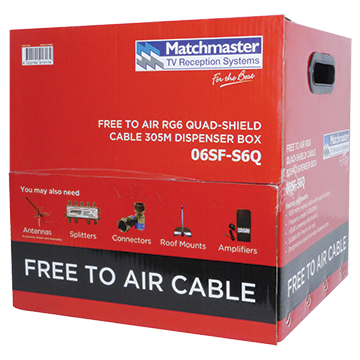

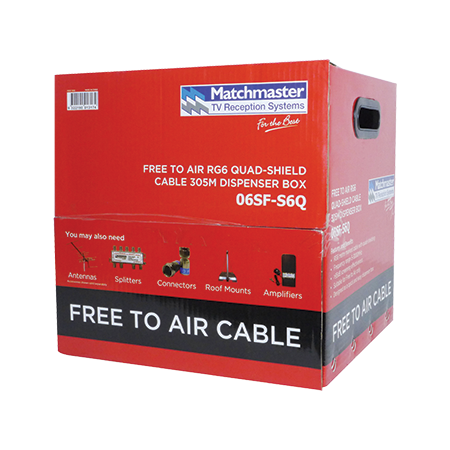

- 305m box dispenser with removable reel
- Metre marked for easy measurement
- Suitable for digital TV
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal quality and compliance with local regulations.
Applications
- Free-to-air DVB-T TV systems
- Satellite TV services
- Digital TV installations requiring low loss coaxial cable
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Compliant with 2011/65/EU RoHS directive limiting hazardous substances
- Durable construction reduces need for frequent replacement
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 305m RG6 Free-to-Air Quad-shield Coaxial Cable Dispenser Box is available now for immediate purchase. Ideal for residential and commercial digital TV and satellite installations.
