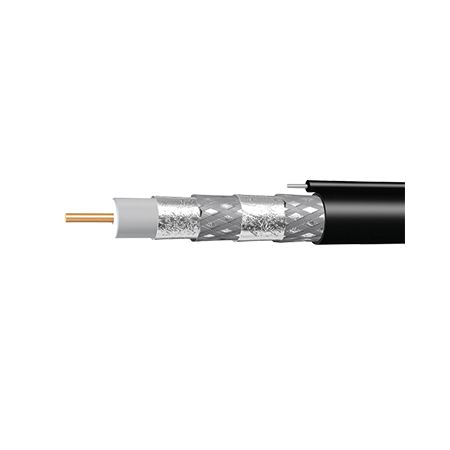

RG6 Quad-shield Coaxial Cable | 305m Length | Messengered Design | Copper Conductor by Matchmaster
RG6 quad-shield coaxial cable with 305m length and messengered design—ideal for TV, internet, and satellite installations. Built for superior signal protection, with copper conductor for high-frequency applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 305m RG6 Messengered Quad-shield Coaxial Cable Reel
Brand: Matchmaster
SKU: 06MM-E6QM
Alternatively Known As: RG6 Quad Shield Coaxial Cable, Messengered RG6 Cable, Quad-shield Coax Cable Reel, RG6 Coaxial Cable for TV and HFC
Technical Specifications
- Inner Conductor: Copper Clad Steel Wire, Diameter 1.02±0.01 mm
- Insulation: Physically Foamed PE, Diameter 4.57±0.15 mm
- Outer Conductor: Four shielding layers including bonded Al/PET/Al tape and Al-Mg Alloy Wire Braid
- Jacket Material: FR PVC or PVC, Diameter 7.54±0.20 mm
- Messenger Material: Steel, Diameter 1.30±0.05 mm
- Bending Radius: Single 35 mm, Typical 70 mm
- Pulling Strength: 200 N
- Impedance: 75±3 Ω
- Capacitance: 54 pF/m
- Propagation Velocity: 82%
- DC Breakdown Voltage: 5.0 kV
- Screening Attenuation: >105 dB @ 5~1000 MHz
- Attenuation: Max 38.84 dB/100m @ 3000 MHz
- Return Loss: ≥20 dB from 5-3000 MHz
- Operating Temperature: -40 to +70°C
- UV Resistance: UL 1581 UV Resistance 720h
- Dimensions (H x L x W): 1300mm x 305000mm x 7540mm
- Weight: 12 kg
Key Features
- RG6 metre marked cable with quad-shield messengered

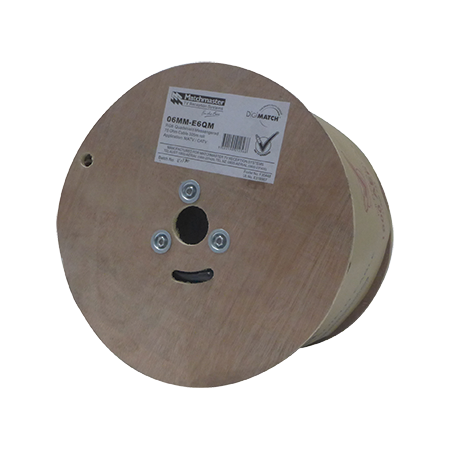

- Sold in a 305 metre reel
- Suitable and approved for pay and digital TV
- Foxtel (F30448), Optus (4867) and NBN approved
- Catenary wire for overhead installation
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for aerial and overhead cable installations to ensure safety and compliance.
Applications
- Free-to-air TV installations
- Foxtel pay TV systems
- Optus HFC network systems
- Above ground aerial installations between poles and buildings
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Compliant with 2011/65/EU RoHS directive limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 305m RG6 Messengered Quad-shield Coaxial Cable Reel is available now for immediate purchase. Ideal for aerial TV and HFC network installations requiring durable, high-performance coaxial cable.
