RG6 Quad-shield Coaxial Cable Reel | 50m Length | 75 Ohm | Copper Conductor by Matchmaster
RG6 quad-shield coaxial cable with 50m length and 75 Ohm impedance—ideal for home theatre and office video distribution. Built for superior signal integrity, with flexible design for indoor and outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

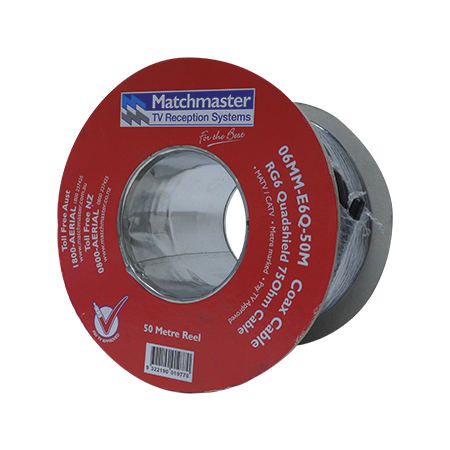

Product Name/Title: 50m RG6 Quad-shield Coaxial Cable Reel
Brand: Matchmaster
SKU: 06MM-E6Q-50M
Alternatively Known As: RG6 Quad Shield Cable, 75 Ohm Coaxial Cable, Satellite Coax Cable, TV Coax Cable, Foxtel Approved Coax Cable
Technical Specifications

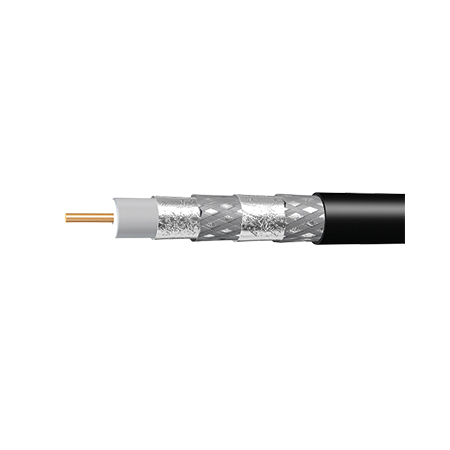

- Inner Conductor: Copper Clad Steel Wire, Diameter 1.02±0.01 mm
- Insulation: Physically Foamed PE, Diameter 4.57±0.15 mm
- Outer Conductor: Four shielding layers including bonded Al/PET/Al tape and Al-Mg Alloy Wire Braid
- Jacket Material: FR PVC or PVC, Diameter 7.54±0.20 mm
- Bending Radius: Single 35 mm, Typical 70 mm
- Pulling Strength: 200 N
- Adhesion Force: >20 N
- Impedance: 75±3 Ω
- DCR Inner Conductor: 102.0 Ω/km
- DCR Outer Conductor: 19.1 Ω/km
- Capacitance: 54 pF/m
- Propagation Velocity: 82%
- DC Breakdown Voltage: 5.0 kV
- Insulation Resistance: >1×10^4 MΩ•km
- Screening Attenuation: >105 dB @ 5~1000 MHz
- Attenuation varies with frequency, max 38.84 dB/100m at 3000 MHz
- Return Loss: ≥20 dB from 5-3000 MHz
- Operating Temperature: -40 to +70°C
- UL 1581 UV Resistance: 720 hours
- Dimensions (H x L x W): 75mm x 50000mm x 75mm
- Weight: 2.5 kg
Key Features
- Foxtel (F30440) and Optus (4868) approved
- Meter marked cable for ease of installation
- Available in 305m reels, box dispenser, 30m, 50m, and 100m rolls
- RG6 3GHz rated quad-shield 75 Ohm coaxial cable
- >105dB of screening to 1000MHz for maximum signal protection
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure optimal signal quality and compliance with network standards.
Applications
- Free to Air TV systems
- Pay TV systems
- Foxtel satellite networks
- Optus cable networks
- Digital TV installations
Standards & Compliance
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable copper-clad steel conductor reduces need for frequent replacements
- Compliant with RoHS directive (2011/65/EU) limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Matchmaster warranty policy for details.
Available Now
The Matchmaster 50m RG6 Quad-shield Coaxial Cable Reel is available now for immediate purchase. Ideal for residential and commercial TV and satellite installations.
