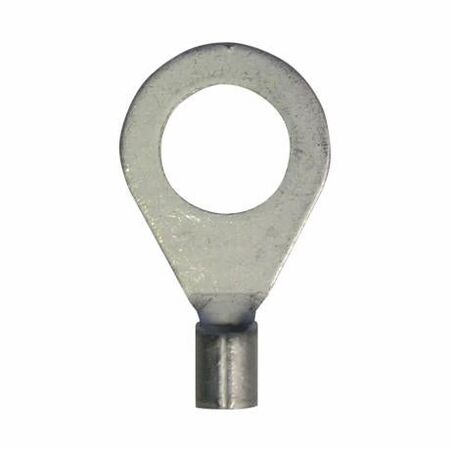

Ring Terminal 1.5-2.5sqmm 10mm Bare Blue Pack of 100 Wattmaster
Wattmaster non-insulated ring crimp terminal, 1.5-2.5sqmm cable, 10mm ring, blue. 600V rated. Pack of 100.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Terminal Type: Non-Insulated Ring
- Ring Size: 10mm
- Cable Size Compatibility: 1.5-2.5mm²
- Material: Copper with electro tinned finish
- Pack Quantity: 100 pieces
- Suitable for cable sizes from 0.5 to 6mm²
- Ring stud sizes supported: 3.7 - 12mm
- Dimensions (H x L x W): 5mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- Non-insulated copper terminals suitable for stranded to fine-stranded cable
- Electro tinned finish for high conductivity
- Easy to connect
- Available in either fork or ring
- Ring stud sizes from 3.7 - 12mm
- Suits cable from 0.5 - 6mm²
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and electrical safety.
Applications
- Electrical wiring connections for stranded and fine-stranded cables
- Suitable for automotive, industrial, and household electrical installations
- Used in electrical panels, control systems, and machinery wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Electro tinned finish enhances durability, reducing the need for frequent replacements
- Copper material is recyclable, supporting sustainable electrical component use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster warranty policy for details.
Available Now
Wattmaster Crimp Terminal Non-Insulated Ring 10mm Cable 1.5-2.5mm² 100 Pack is available for immediate purchase, ideal for electrical wiring and connection applications.
