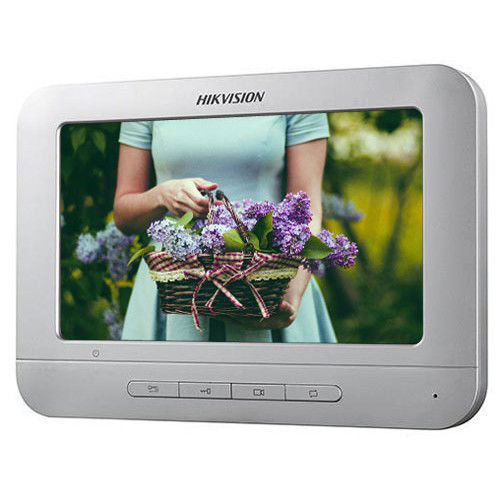

Room Station 4 Wire 7 Inch Hikvision
Hikvision 4 wire room station features a 7 inch display. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 7-Inch Video Intercom Monitor, 4-Wire Indoor Station, Analogue Room Station
Technical Specifications
- System Type: 4-wire analogue video intercom indoor station
- Display: 7-inch colour TFT LCD
- Display Resolution: 800 × 480 pixels
- Operation: Physical buttons
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Quality: Noise suppression and echo cancellation
- Four-Wire Interface: Video input, audio input/output, 12 VDC power and ground
- Power Supply: 12 VDC
- Maximum Power Consumption: ≤5 W
- Operating Temperature: -10°C to +55°C
- Operating Humidity: 10% to 90% RH, non-condensing
- Installation: Surface or wall mounting
- System Capacity: Supports up to three indoor stations in one system
- Video Monitoring: Supports door station and external analogue camera monitoring
- Door Control: Remote door unlocking
- Dimensions (H x L x W): 132.8mm x 195.8mm x 18.39mm
- Weight: 0.278 kg
Key Features
- 7-inch colour display for clear visitor identification
- Hands-free two-way video and audio communication
- Four-wire analogue connection for straightforward intercom installation
- Physical buttons for call, monitoring and door-release functions
- Supports remote unlocking from the indoor station
- Can monitor the connected door station and an external analogue camera
- Up to three indoor stations can be cascaded in the system
- Low-profile surface-mount design
Professional Installation Requirements
- Installation should be completed by a suitably qualified security or communications installer. Use a regulated 12 VDC supply and install the connected cabling and power equipment in accordance with applicable Australian wiring and electrical safety requirements.
Applications
- Residential video intercom systems
- Small commercial premises
- Apartment and townhouse entry systems
- Replacement or extension of compatible Hikvision 4-wire analogue intercom installations
- Visitor identification and remote door release
Standards & Compliance
- AS/NZS 62368.1: Audio/video, information and communication technology equipment safety requirements may apply to the powered indoor station; verify the supplied Australian compliance documentation.
- AS/NZS 3000: Applicable to the associated low-voltage electrical installation and wiring where relevant.
Environmental Benefits
- 12 VDC operation and maximum power consumption of 5 W support low-power operation.
- Four-wire connectivity can support reuse of existing compatible intercom cabling, potentially reducing retrofit cabling and installation waste.
- Durable fixed-installation design can reduce replacement frequency compared with temporary or disposable communication equipment.
Warranty Information
Hikvision Australia warranty support is provided through authorised distribution channels and is subject to the product-specific warranty period and purchase documentation. Confirm the applicable term with the authorised Australian distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
