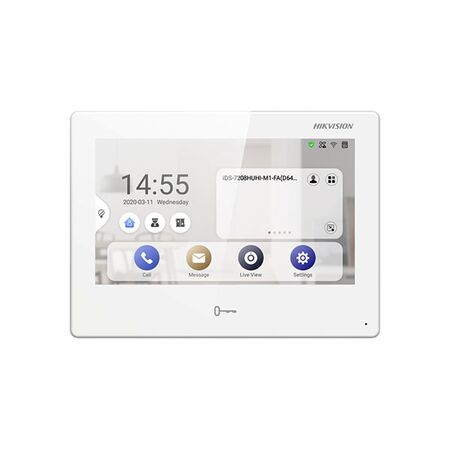

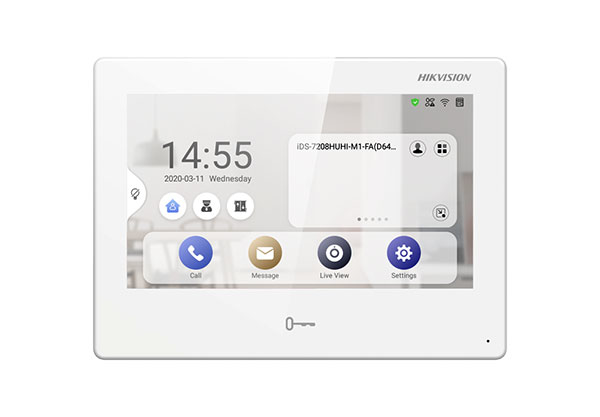

Room Station Tablet 7 Inch Hikvision
Hikvision room station tablet features a 7 Inch screen. Ideal for indoor answering stations in intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 7-Inch Indoor Station, Hikvision Video Intercom Room Station, DS-KH6320-(W)TE1 Series Indoor Station
Technical Specifications
- Display: 7-inch colour TFT capacitive touchscreen
- Display Resolution: 1024 x 600
- Operating System: Embedded Linux
- Network Interface: 10/100 Mbps self-adaptive Ethernet
- Wireless: 2.4 GHz Wi-Fi, IEEE 802.11b/g/n
- Protocols: TCP/IP, SIP and RTSP
- Power Supply: Standard PoE or 12 VDC
- Power Consumption: Up to 5 W
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Features: Noise suppression, echo cancellation and adjustable volume
- Storage: TF card support, up to 128 GB
- Installation: Surface mounting
- Operating Temperature: -10 °C to 55 °C
- Operating Humidity: 10% to 90% relative humidity, non-condensing
- Control Interfaces: Alarm inputs, alarm outputs, RS-485 and lock-control relays
- Dimensions (H x L x W): 140mm x 200mm x 15.1mm
- Weight: 0.355 kg
Key Features
- 7-inch touchscreen for indoor answering stations
- Receives video intercom calls and supports two-way communication
- Remote door unlocking through the intercom system or compatible mobile client
- Supports live viewing from door stations and linked cameras
- Compatible with standard PoE network infrastructure
- Supports Hik-Connect mobile control on compatible configurations
- Can store captured images, messages and alarm records on a TF card
- Suitable for integration with selected alarm, CCTV and elevator-control systems
Professional Installation Requirements
- Installation and commissioning should be performed by a suitably qualified security or intercom technician. PoE or 12 VDC power, network configuration, door-release wiring and integration with the external door station should follow Hikvision installation instructions and applicable Australian electrical requirements.
Applications
- Residential apartment and villa video intercom systems
- Commercial building entrance communication
- Indoor answering stations for offices, hotels and accommodation facilities
- Reception and controlled-access environments
- Intercom systems requiring remote door release and camera viewing
Standards & Compliance
- Relevant equipment safety framework: AS/NZS 62368.1:2018 for audio, video and information and communication technology equipment; confirm the exact Australian model's RCM and compliance documentation before installation.
Environmental Benefits
- Low operating power of up to 5 W can reduce energy consumption during continuous operation
- Network-based video and audio communication can reduce the need for separate dedicated communication and monitoring equipment
- Replaceable TF-card storage and firmware support can extend useful service life and reduce premature electronic waste
Warranty Information
Hikvision Australia warranty support is generally tied to purchase through authorised Australian distribution partners. The standard warranty term for this room station model was not identified in the available manufacturer sources; confirm the applicable warranty with the authorised distributor before purchase.
Available Now
Available through Hikvision and authorised Australian security, access-control and intercom distributors.
