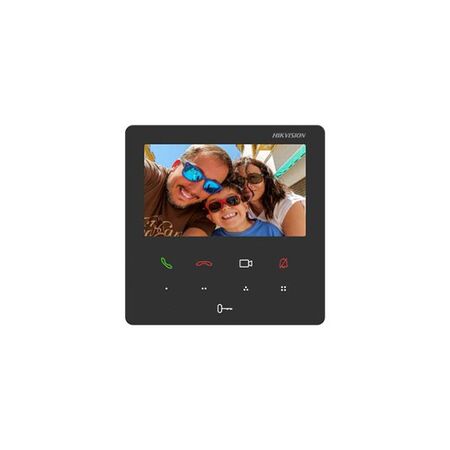

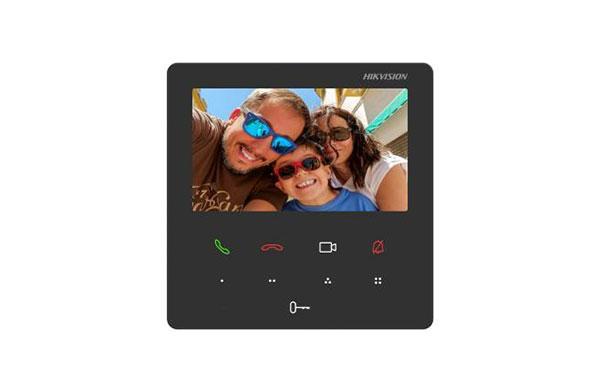

Room Station Value Series Hikvision
Hikvision Value Series room station features the Value Series intercom range. Ideal for intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Value Series Indoor Station, Hikvision IP Intercom Room Station, Hikvision DS-KH6110-WE1 Indoor Monitor
Technical Specifications
- Model: DS-KH6110-WE1
- Display: 4.3-inch colour TFT screen
- Display Resolution: 480 × 272 pixels
- Operation: Capacitive touchscreen with 9 touch buttons
- Operating System: Embedded Linux
- Audio: Built-in omnidirectional microphone and loudspeaker
- Audio Codec: G.711 U-law and G.711 A-law
- Communication Protocols: TCP/IP, SIP and RTSP
- Network: 1 × RJ-45 100 Mbps Ethernet; Wi-Fi 802.11 b/g/n, 2.4 GHz
- Alarm Inputs: 4
- Power Supply: IEEE 802.3af standard PoE or 12 VDC
- Power Consumption: ≤ 4 W
- Operating Temperature: -10 °C to 50 °C
- Operating Humidity: 10% to 90% relative humidity
- Installation: Wall mounting or table mounting
- Linked Indoor Extensions: Up to 16
- Dimensions (H x L x W): 120mm x 120mm x 21mm
- Weight: 0.1978 kg
Key Features
- Value Series IP video intercom indoor station
- 4.3-inch colour touchscreen for visitor communication and door release
- Supports hands-free two-way audio with noise suppression and echo cancellation
- Remote intercom and unlocking through the Hik-Connect application
- Live viewing of linked door stations and compatible cameras
- Customisable touch-button functions
- Supports standard PoE for simplified installation
- Suitable for residential apartment and entry-level intercom installations
Professional Installation Requirements
- Installation and network commissioning should be performed by a suitably qualified security or communications technician. Use a compliant PoE network or isolated 12 VDC supply, and configure the station with compatible Hikvision intercom equipment. Any associated door-lock or mains-voltage work must be completed by appropriately licensed tradespeople.
Applications
- Residential apartment intercom systems
- Single-home video door-entry systems
- Small commercial access-control installations
- Multi-dwelling buildings requiring indoor video communication
- Indoor visitor identification and remote door unlocking
Standards & Compliance
- AS/NZS IEC 60839.11.1:2019 — relevant to electronic access-control systems and components; product-specific Australian conformity documentation should be verified for the supplied regional variant
Environmental Benefits
- Low power consumption of up to 4 W supports reduced operating energy use
- PoE capability can reduce the need for a separate power adaptor and additional cabling
- Solid-state electronic construction and network connectivity can support extended service life and reduce replacement waste
- RoHS-related product documentation is available for the model family, subject to regional variant confirmation
Warranty Information
Hikvision intercom products supplied through participating Australian distributors are commonly covered by a 3-year back-to-base manufacturer warranty. Confirm warranty terms and authorised-distribution status at purchase.
Available Now
Available through Hikvision and authorised Australian security and communications distributors, subject to regional model and distributor stock.
