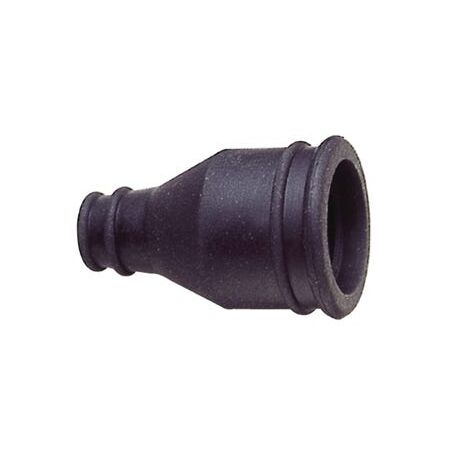

Rubber End Sleeve M20 Polychloroprene IP54 Black Pack of 10 Cabac

BRAND: CABAC
SKU: GZ13
$7.10 List price: $9.40
1 EA ($7.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Designed for sealing and protecting conduit terminations in electrical installations using M20 conduit systems. Manufactured from black polychloroprene rubber with UV resistance for indoor and outdoor applications. Provides IP54 protection when installed correctly and suits PA, PI, CP, PP, PADL and PF conduit series. Refer to the detailed specifications below for dimensions, temperature ratings, and installation guidance.
Technical Specifications
  • Material: Black polychloroprene rubber
  • Suitable for conduit series: PA, PI, CP, PR, PADL & PF
  • Temperature range: -30ºC to +120ºC
  • Ingress Protection: IP54
  • Mechanical protection: Low
  • Dimensions (H x L x W): 25mm x 40mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Made from black polychloroprene rubber
  • Tapered sealing system for neat conduit termination
  • UV-resistant
  • Temperature range from -30ºC to +120ºC
  • Provides low mechanical protection
  • IP54 rating when used appropriately
Professional Installation Requirements
  • Installation by a qualified professional is recommended to ensure proper sealing and protection.
Applications
  • Cable management for electrical conduits
  • Suitable for PA, PI, CP, PR, PADL & PF conduit series
  • Used in light, standard, and heavyweight conduit variants
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable material reduces need for frequent replacements
  • UV resistance extends product life, reducing waste
Warranty Information

Standard manufacturer warranty applies.

Available Now

The Cabac Rubber End Sleeve M20 is available for immediate purchase, ideal for electrical conduit management and protection.

FAQ

Q: What material is the Rubber End Sleeve M20 made from?
A: The sleeve is manufactured from black polychloroprene rubber for durability and UV resistance.

Q: What level of ingress protection does this end sleeve provide?
A: The product provides IP54 ingress protection when installed and used appropriately.


Pair this installation with a rubber conduit end sleeve for larger conduit sealing applications where additional coverage is required.
A screwed bush female can assist with neat cable entry and conduit termination points in switchboards and enclosures.
Install alongside a screwed reducer when transitioning between different conduit sizes on the same run.
