S70 Minicom Kit Bronze iCentral
iCentral S70 Minicom kit is a 70 Series intercom kit in a bronze finish. Ideal for compact residential intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral Minicom S70 System, 70 Series Intercom Kit, Minicom Bronze Intercom Kit
Technical Specifications
- Finish: Bronze

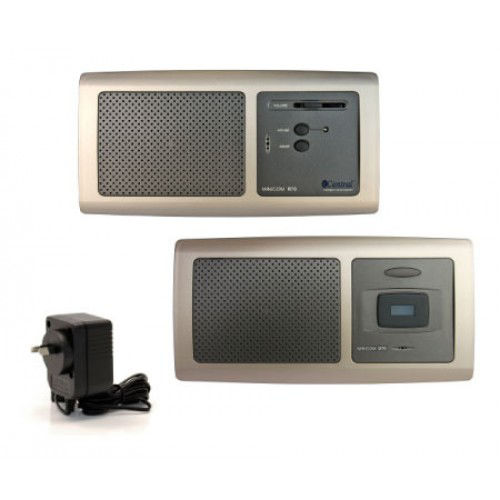

- Kit Contents: 1 x bronze front door station, 1 x bronze room station, 1 x DC power supply
- Power Requirement: 12–13.8 VDC at 500 mA
- System Capacity: Up to four stations in total
- Communication: Hands-free room and door station communication
- Door Chime: 10 selectable programmable chime tones
- Lock Output: 12 VDC at 50 mA via relay interface
- Speaker: Room station 87 mm, 5 W; door station 65 mm, 1.5 W
- Cable Compatibility: CAT5, telephone cable or Valet cable
- Manufacturing: Designed and made in Australia
- Dimensions (H x L x W): 130mm x 265mm x 30mm
- Weight: 1.2 kg
Key Features
- Compact two-station intercom kit for residential installations
- Bronze door and room stations for a coordinated finish
- Supports communication between room stations and the front door
- Optional electric door strike or automatic gate release
- Selectable electronic door chimes with 10 tone options
- Expandable to a maximum of four stations
- Automatic reset circuitry after intercom calls
- Backward compatible with previous Minicom series
Professional Installation Requirements
- Installation should be carried out by a suitably qualified installer. Any mains connection to the supplied plug pack must comply with applicable Australian electrical requirements, and external door stations require suitable weather protection.
Applications
- Compact residential intercom installations
- Front-door communication for houses, units and small residences
- Small offices and reception areas
- Installations requiring optional electric lock or gate release
Standards & Compliance
- AS/NZS 62368.1:2022 or current applicable edition: safety standard relevant to audio, video and information and communication technology equipment, including associated power supplies
- AS/NZS 3000:2018: electrical installation requirements applicable to associated wiring and mains-connected equipment
Environmental Benefits
- Low-voltage 12–13.8 VDC operation at the intercom stations
- Repairable and expandable design can reduce replacement waste when system requirements change
- Expandable architecture allows additional stations to be added without replacing the complete system
- Durable fixed-installation components can support a long service life
Warranty Information
iCentral intercom systems are covered for one year from the date of purchase. iCentral will repair or replace defective components, with return freight costs generally payable by the purchaser.
Available Now
Available through iCentral, Valet and authorised Australian security and intercom distributors.
