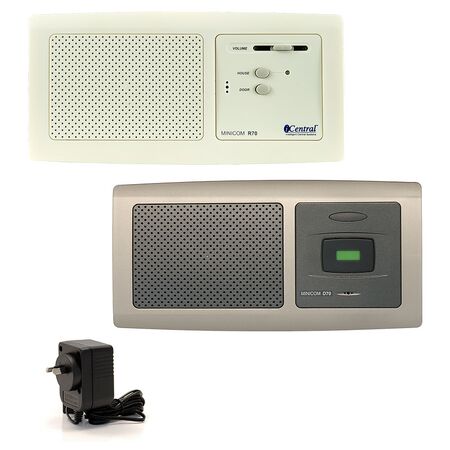

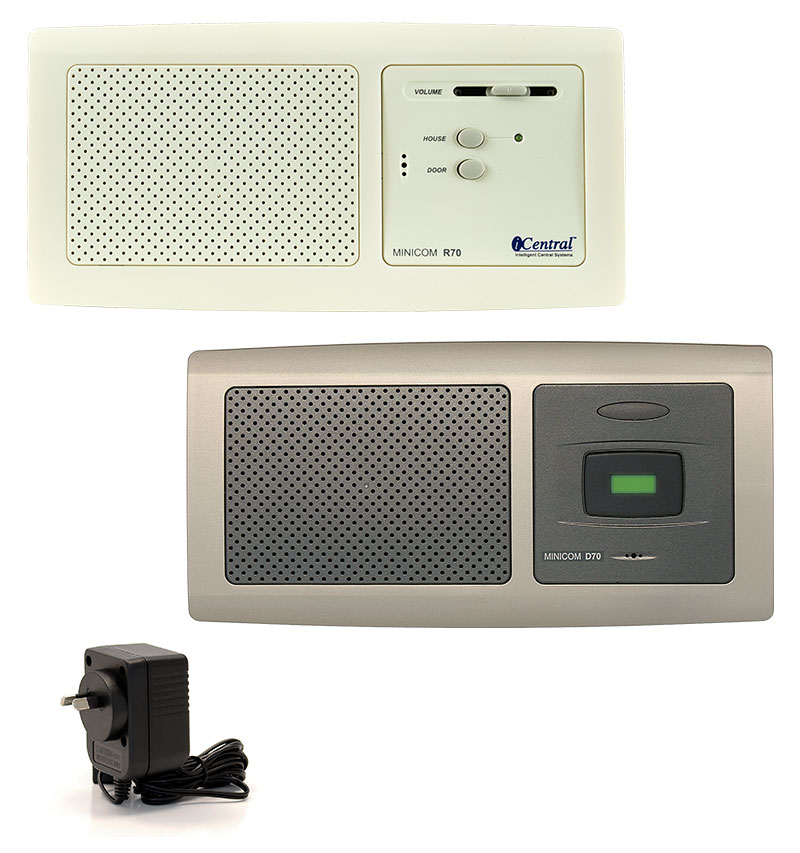

S70 Minicom Kit White iCentral
iCentral S70 Minicom kit is a 70 Series intercom kit in a white finish. Ideal for compact residential intercom installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: iCentral S70 Minicom Kit, Minicom S70 System Kit, 70 Series Audio Intercom Kit
Technical Specifications
- System Type: Analogue audio intercom
- Kit Contents: 1 x front door station, 1 x white room station, 1 x DC power supply
- Maximum Stations: 4 stations total
- Power Requirement: 12–13.8 VDC at 500 mA
- Room Speaker: 87 mm cloth-surround speaker, 5 W
- Door Speaker: 65 mm Mylar-cone speaker, 1.5 W
- Wiring: Minimum 5 conductors; CAT5, telephone or Valet cable recommended
- Door Chimes: 10 selectable chime melodies
- Lock Output: 12 VDC at 50 mA via relay
- Manufacture: Designed and made in Australia
- Dimensions (H x L x W): 130mm x 265mm x 30mm
- Weight: 1.2 kg
Key Features
- Compact intercom kit for residential installations
- Includes front door station, white room station and DC power supply
- Supports communication between room stations and the front door
- Expandable with compatible Minicom room and door stations up to four stations
- Provides optional electric door strike or automatic gate release
- Selectable door chime melodies
- Backward compatible with previous-series Minicom components
- Low-voltage 12 VDC operation
Professional Installation Requirements
- Installation should be completed by a suitably qualified installer. Run and terminate the intercom cabling according to the manufacturer’s instructions, and use an appropriately qualified electrician for any mains-side work associated with the power supply or electric lock installation.
Applications
- Compact residential intercom installations
- Single-home front door communication
- Residential gate and entry communication
- Installations requiring optional electric door or gate release
- Small retrofit intercom systems using existing compatible Minicom components
Standards & Compliance
- Applicable safety framework: AS/NZS 62368.1:2022 for audio, video and information and communication technology equipment; verify the specific product compliance declaration before installation
- Electrical installation work should follow AS/NZS 3000 where applicable
Environmental Benefits
- Low-voltage operation reduces energy use during normal standby and communication operation
- Expandable architecture can extend the system without replacing the original kit
- Backward compatibility may reduce electronic waste during system upgrades
- Repairable and replaceable station-based design can extend service life
Warranty Information
iCentral intercom and security products are covered by a 3-year warranty against defects from the date of purchase under the current Ness Corporation warranty information, subject to its terms and exclusions.
Available Now
Available through iCentral, Ness Corporation, Valet and authorised Australian distributors, subject to distributor stock.
