Satellite Dish 65cm Offset Fixed | Polyester Coating | Weather Resistant by Jonsa

BRAND: Jonsa

SKU: SDJ6502B

$63.10 List price: $82.10

+ −

30 Days Return Delivery Options

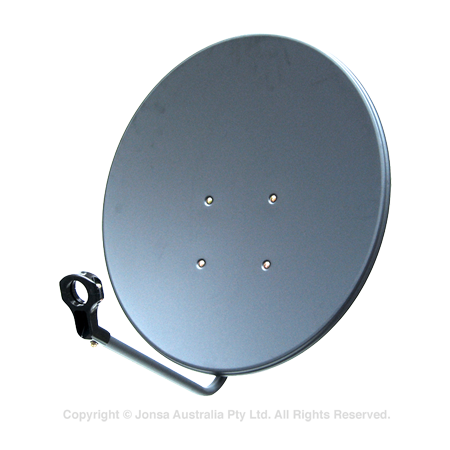

Satellite dish with 65cm offset and polyester powder coating—ideal for commercial installations. Built for reliable satellite reception, with weather-resistant design for exterior environments.

Description

Product Name/Title: SATELLITE DISH 65 OFFSET FIXED (80 PK)

Brand: Jonsa

SKU: SDJ6502B

Alternatively Known As: 65cm Satellite Dish, Offset Satellite Dish, Fixed Satellite Dish

Technical Specifications

Offset Angle: 24.62°
Aperture (Diameter): Horizontal Axis: 65 cm | Vertical Axis: 72.62 cm
Efficiency: 77 % Min
Ku-Band Gain @ 12.50 GHz: 37.44 dBi
F/D Ratio: 2.6
Focus Length: 392 mm
Material: Galvanised Steel
Finish: Polyester Powder Coating
Adjustment Type: AZ/EL
Elevation: 12 ° … 70 °
Azimuth: 0 ° … 360 °
Pole Diameter: 41.5 mm … 46 mm
Relative Humidity: 1 … 100 %
Dimensions (H x L x W): 720mm x 650mm x 650mm
Weight: 5 kg

Key Features

Best suited for commercial installations.
Polyester based powder coating designed for exterior environments.
Weather resistant and retains color under light and salt spray.

Professional Installation Requirements

Professional installation is recommended for optimal performance and alignment.

Applications

Commercial: Suitable for various commercial installations requiring reliable satellite reception.

Standards & Compliance

Complies with AS/NZS 5033 for installation of photovoltaic (solar) systems.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Jonsa Satellite Dish 65 Offset Fixed (80 PK) is available now for immediate purchase. Ideal for commercial installations requiring reliable satellite reception.
