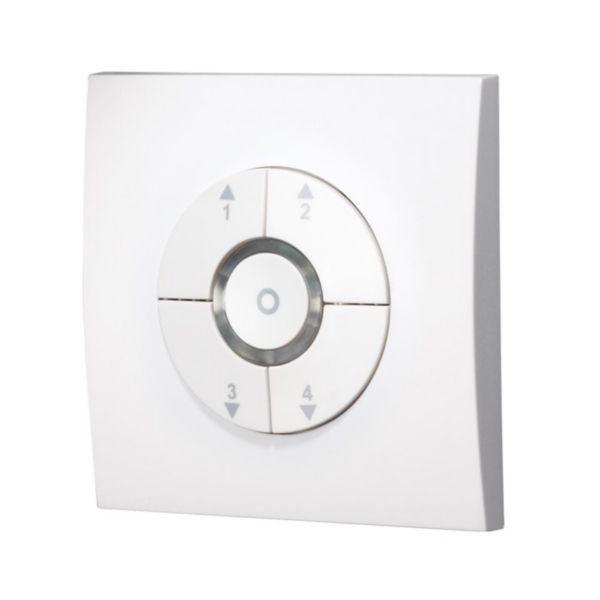

CP Electronics Scene Setting Plate DALI Broadcast/DSI | Four Scene Buttons | LED Lit Bezel | @Each of 1 | by CP Electronics
The CP Electronics Scene Setting Plate DALI Broadcast/DSI is designed for seamless lighting control in commercial and residential settings. With four scene buttons offering brightness levels of 100%, 75%, 50%, and 25%, it allows for intuitive dimming and scene selection. Ideal for offices, retail spaces, and hospitality environments, this controller features an LED lit bezel for visual feedback and fits standard UK and EU backboxes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CP Electronics Scene Setting Plate DALI Broadcast/DSI | Four Scene Buttons | LED Lit Bezel | @Each of 1 | by CP Electronics
Brand: CP Electronics
SKU: DA-SG-4PM-W
Alternatively Known As: DALI Scene Plate, DSI Digital Dimmer Switch, Lighting Scene Controller, Broadcast DALI Dimmer
Technical Specifications
- Single channel broadcast controller for DALI or DSI devices
- Four scene buttons with default brightness levels: 100%, 75%, 50%, 25%
- Raise and lower light level functions via buttons
- Off button toggles lights off and last selected scene
- Data sent in broadcast mode, not suitable for addressed systems
- LED lit bezel for visual feedback
- Fits UK and EU style backboxes
- Dimensions (H x L x W): 86mm x 30mm x 86mm
- Weight: 0.15 kg
Key Features
- Compatible with both DALI and DSI devices
- Four button operation enables 4 lighting levels or scenes to be set up
- Intuitive push button interface
- Visual feedback via LED lit bezel
- Designed to fit both UK and EU style backboxes
- Low profile fascia with concealed screw fasteners
- Fascia available in a range of finishes
- Scenes can be selected via infrared using the UHS7 handset
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Lighting control in commercial buildings
- Office lighting management
- Retail and hospitality lighting scenes
- Educational and healthcare facility lighting
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through precise lighting control and dimming
- Supports efficient lighting management reducing unnecessary power consumption
Warranty Information
Standard manufacturer warranty of 2 years against defects.
Available Now
The CP Electronics Scene Setting Plate DALI Broadcast/DSI Digital Dimming White is available for immediate purchase, ideal for commercial and residential lighting control applications.
