G'day! Have a squiz at your home's switchboard. If it's a modern one, you'll see a neat row of slim switches, each with a little 'Test' button. These are most likely RCBOs, and they are the new standard for home electrical safety in Australia.

You'll see different numbers on them, like '10', '20', and one of the most common fellas of the lot: the 16a RCBO. It might not look like much, but it's a fair dinkum workhorse, silently protecting your home and your family 24/7. Let's get the lowdown on what it is and what it does.

The Two-for-One Job: Why an RCBO is a Ripper Idea

First up, you need to know what an RCBO is. The name is a bit of a mouthful: Residual Current Breaker with Overload protection.

In plain English, it's a clever, all-in-one safety device that does two critical jobs at the same time:

1. It's a Circuit Breaker (MCB): This is the part that protects your wiring and appliances from damage. It trips and cuts the power if it detects an overload (like too many appliances plugged in at once) or a short circuit. This stops your home's wiring from overheating and potentially starting a fire.
2. It's a Safety Switch (RCD): This is the part that protects you and your family from fatal electric shock. It constantly monitors for tiny "leaks" of electricity and will trip the power in a fraction of a second if it senses power going where it shouldn't – like through a person.

So, What's the '16a' Bit For?

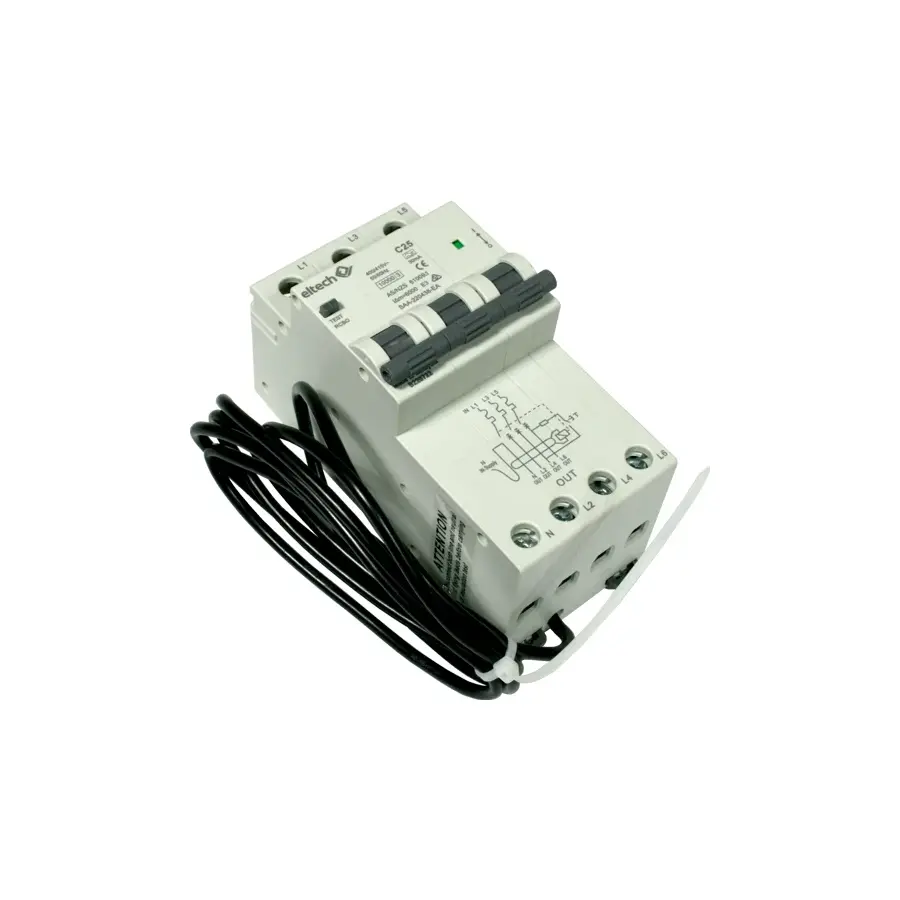

Righto, so the "16a" on a 16a RCBO stands for 16 Amps. This is the circuit breaker part of its job. It means the RCBO is designed to protect a circuit that can handle a maximum of 16 amps of current.

In Australia, a 16 amp rating is a very common size for protecting your General Purpose Outlets (GPOs) – that's your power points, mate.

A single 16a RCBO is a real all-rounder and is typically used to protect:

• Power Point Circuits: Often, one 16A circuit will protect a group of power points in your home, like in the bedrooms or the living room.
• Lighting Circuits: In some (especially older) homes, 16A may have been used for a lighting circuit, although 8A or 10A is more common today.
• Dedicated Circuits: A 16A circuit is also perfect for a single, dedicated appliance that needs a bit of grunt but doesn't quite need the full 20A, like a larger split-system air conditioner, a pool pump, or a specific workshop setup.

The Big Advantage: Fault Isolation

In an older switchboard, you might have one main safety switch (RCD) protecting a whole bank of plain circuit breakers. The problem? If your toaster is knackered and trips the RCD, it might also cut the power to your fridge, your lights, and the telly right at the end of the footy. A fair dinkum pain.

With a 16a RCBO on your power circuit, that fault is isolated. If the toaster trips, only the power point circuit goes out. The lights, the fridge, and everything else stay on. You beauty!

A Job for a Licensed Professional ONLY: A Serious Warning

Righto, let's be dead clear on this. Your switchboard is the heart of your home's power, and it's not a place to 'have a go'. It's an extremely dangerous environment.

Installing, replacing, or doing any work on a 16a RCBO is absolutely not a DIY job. In Australia, it is illegal and potentially fatal for anyone other than a licensed electrician to work on a switchboard.

A qualified professional has the training, testing gear, and legal authority to work on your board, ensure the RCBO is the correct size for your home's wiring (as per AS/NZS 3000), and make sure your family is protected. Don't risk it, mate.

A Professional Job Needs Pro Gear

A safe, modern switchboard is the foundation of a safe home. For professional installers and licensed electricians who build and upgrade switchboards, sourcing reliable, compliant gear is paramount. As one of Australia's most comprehensive electrical wholesaler and suppliers, Schnap Electric Products stocks a complete range of trade-quality switchboard gear. This includes high-quality, certified 16a RCBO units from the world's most trusted brands, alongside all the circuit breakers, safety switches, and enclosures that a qualified professional needs to get the job done right. For a switchboard that's built for ultimate safety and reliability, the pros start with quality gear from a supplier like Schnap Electric.
