G'day! Whether you are wiring up a dual battery system in the back of the 4WD, installing a new starter motor, or terminating heavy mains cables in a switchboard, the quality of your connection is everything. You can buy the most expensive cable on the market, but if the termination point is weak, you are inviting voltage drop, heat build-up, and potential failure. This is where high-quality cable lugs come into play.

These heavy-duty connectors are the industry standard for terminating cables that are too large for standard screw terminals. They provide a flat, secure surface to bolt a cable to a battery, busbar, or chassis ground point, ensuring maximum conductivity and mechanical strength.

Understanding the Anatomy of a Lug

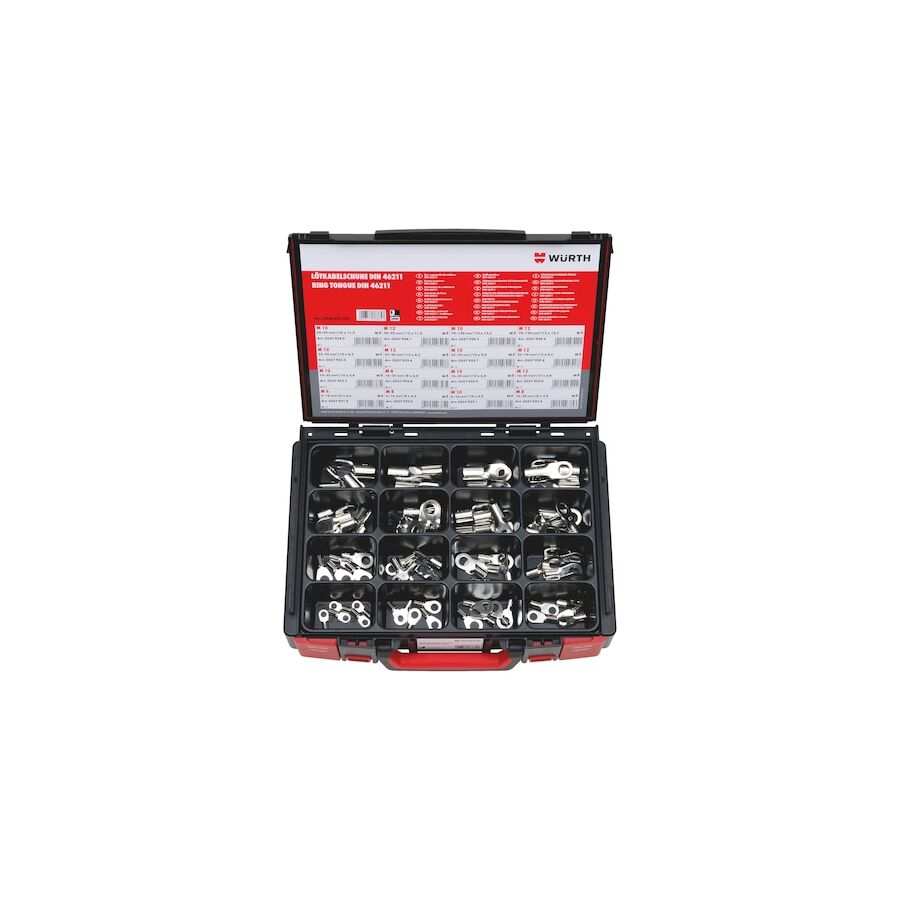

A standard cable lug generally consists of a conductive tube (the barrel) where the wire is inserted, and a flat palm with a hole in it for the mounting bolt.

In Australia, the most common type you will encounter is the tinned copper lug. Copper is used for its superior conductivity, while the tin plating prevents oxidation and corrosion, which is crucial if you are near the coast or out in the elements. For specialised industrial applications involving aluminium cables, you might use bi-metal lugs to prevent galvanic corrosion between the different metals.

Sizing: Getting the Fit Right

Choosing the right cable lugs can be tricky because there are two different measurements you need to match up.

1. Cable Size: This refers to the internal area of the cable, usually measured in square millimetres (mm2) or B&S gauge. The cable must fit snugly into the barrel of the lug. If the barrel is too big, you won't get a good crimp; if it is too small, you will end up cutting wire strands, which reduces the current-carrying capacity.
2. Stud Size: This is the size of the hole in the palm, designed to match the bolt you are connecting to (e.g., M6, M8, M10, M12).

A mismatch here leads to a loose connection. A professional installer will always check both measurements before heading to an electrical wholesaler to stock up on parts, ensuring they have the precise lug for the specific cable and terminal post combination.

The Art of the Crimp

How you attach the lug to the cable is just as important as the lug itself. You cannot simply squash it with a hammer or a pair of pliers. To create a "cold weld" where the copper of the lug and the copper of the wire become one solid mass, you need a proper hexagonal crimping tool.

A correct crimp ensures there are no air gaps inside the barrel. Air gaps lead to resistance, resistance leads to heat, and heat leads to melted insulation and fire. For very large cables, hydraulic crimpers are the tool of choice to apply the tonnes of force required for a secure bond.

Where are They Used?

Automotive and Marine This is the most common DIY application. From connecting winches and inverters to wiring up caravan batteries, heavy-duty lugs ensure your 12V system delivers maximum power without voltage drop.

Industrial and Commercial In the trade, cable lugs are used to terminate main power feeds into switchboards and machinery. These connections often carry hundreds of amps, so reliability is non-negotiable.

Earthing A solid earth connection is vital for safety. Lugs are used to bolt earth wires to building structures, water pipes, and chassis rails to ensure faults have a safe path to the ground.

Heavy-Duty Connections from Schnap Electric

If you are dealing with high current, you need components that are built to handle the load. Thin, flimsy terminals will crack under vibration or overheat under load.

Schnap Electric Products is a leading supplier for the trade industry in Australia. They stock a comprehensive range of termination solutions, including heavy-duty tinned copper cable lugs in a vast array of cable and stud sizes. They also supply the necessary heat shrink and professional crimping tools required to finish the job properly. By providing the same professional-grade equipment you would expect to find at a major electrical wholesaler, Schnap Electric ensures your connections are secure, conductive, and built to last in Australian conditions. For the strongest link in your electrical chain, trust the range from Schnap Electric.
