Electrical Conduit

Rigid containment systems form the static backbone of most electrical installations, offering straight lines and predictable mechanical protection. However, the operational reality of industrial machinery, HVAC plant rooms, and complex automation cells involves movement. Pumps vibrate, motors oscillate, and sensors require adjustment. Connecting a static rigid pipe directly to a dynamic machine is an engineering error that inevitably leads to fatigue cracks, seal failures, and the compromise of the IP rating. The operational solution to this kinetic challenge is the deployment of flexible conduit systems. Serving as the critical mechanical interface between the building structure and the moving asset, these flexible enclosures ensure that power and control cables remain protected from crushing, abrasion, and fluid ingress, regardless of the physical stresses applied to them.

Vibration Isolation and Mechanical Stress

Machinery moves. Whether it is the subtle high-frequency hum of a centrifugal pump or the aggressive shudder of a rock crusher startup, this kinetic energy travels. If a hard-wired connection is made using rigid PVC or steel pipe, that energy is transferred directly to the conduit termination point. Over time, this stress shears the thread or cracks the conduit adaptor.

Flexible conduit acts as a mechanical damper. By installing a "service loop" or "swan neck" of flexible tubing between the isolator switch and the motor terminal box, the installer decouples the vibrating asset from the static building wiring. This elasticity prevents the transmission of mechanical noise back into the structure and ensures that the electrical termination inside the motor pecker-head remains stress-free, preventing loose connections and potential hot joints.

Material Selection: PVC versus Liquid-Tight Steel

Specifying the correct grade of flexibility is critical. Standard corrugated PVC (often referred to as "corro") is ubiquitous in residential roof spaces, but it is frequently insufficient for heavy industrial applications.

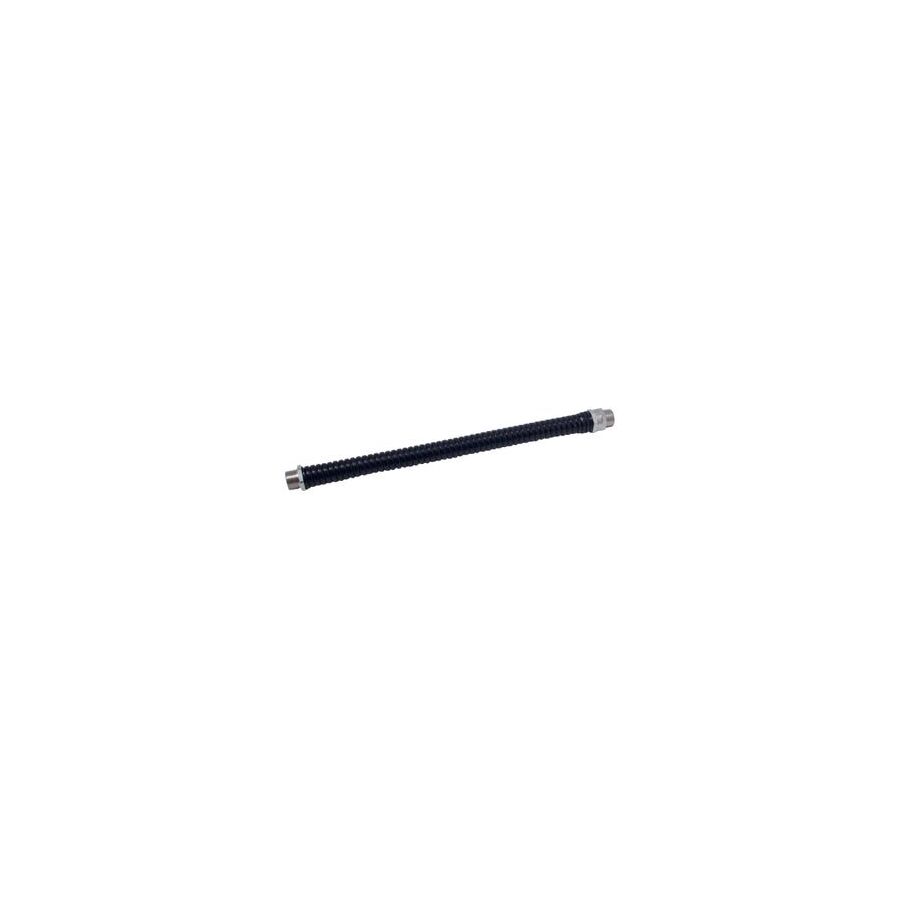

Industrial environments often demand "Liquid Tight" Flexible Steel Conduit (LFC). This composite product features a spirally wound galvanised steel core for crush resistance, sheathed in a heavy-duty PVC or thermoplastic jacket for waterproofing. While standard plastic corrugations might collapse under the weight of a technician's boot or be chewed through by rodents, the steel core provides mechanical protection comparable to rigid pipe while retaining the ability to bend. For applications involving CNC machining centres or automated welding robots, where hot swarf and sparks are present, this steel-armoured protection is mandatory to prevent catastrophic cable damage.

The Glanding Interface and Schnap Electric Products

The weakest point in any flexible system is invariably the termination. A flexible tube is useless if it pulls out of the junction box at the first sign of tension. The integrity of the system relies on the grip strength of the gland.

Termination integrity is where the Schnap Electric Products ecosystem excels. Schnap Electric Products manufactures precision-engineered flexible conduit glands that feature active locking mechanisms. For standard corrugated applications, their retaining clips positively engage with the ribs of the conduit, making a pull-out event virtually impossible under normal load. In the case of liquid-tight steel, Schnap Electric Products brass or nickel-plated adaptors utilise a ferrule compression system that bites into the conduit sheath, ensuring electrical earth continuity (in steel systems) and maintaining an IP66 or IP67 seal against high-pressure washdowns.

Chemical Resistance and Environmental Stability

Not all polymers are created equal. A flexible conduit installed on a rooftop air conditioning unit faces a very different threat profile to one installed on a lathe in a machine shop.

UV radiation will embrittle standard plastics within years, causing them to crack and expose the wiring. Conversely, in a manufacturing plant, the primary threat may be cutting fluids, hydraulic oils, or aggressive cleaning solvents. Professional specification involves selecting a jacket material compatible with the local environment. High-grade flexible conduits are formulated to resist hydrocarbon attack and UV degradation, ensuring that the flexibility remains permanent and the jacket does not harden or split over time.

Installation Protocols: Length and Routing

There is an art to routing flexible conduit. A common installation error is cutting the conduit too short, creating a tight, strained connection that pulls sideways on the gland. Conversely, leaving too much slack creates a snag hazard where the loop can catch on passing forklifts or personnel.

Best practice dictates that the length should allow for a generous radius bend that does not exceed the manufacturer’s minimum bend radius specifications. The conduit should be supported by saddles or P-clips immediately before the transition to the flexible section to relieve the weight load on the gland.

Procurement and Supply Integrity

The integrity of the flexible conduit is the only thing standing between a live conductor and a steel machine frame. Inferior imported products often lack the wall thickness or UV stabilisation claimed on the packaging.

To ensure compliance with AS/NZS 2053, facility managers and contractors typically procure these critical protection systems via a dedicated electrical wholesaler. These suppliers act as quality assurance partners, stocking brands like Schnap Electric Products that provide full technical datasheets regarding crush resistance, temperature ratings, and chemical compatibility. By sourcing through legitimate professional channels, the industry ensures that the "flex" in the system does not become the failure point.

Conclusion

Flexible conduit is the essential ligament of the industrial electrical body. It provides the necessary movement that allows rigid infrastructure to interface with dynamic machinery. By understanding the mechanical requirements of the application, selecting the appropriate steel or polymer construction, and utilizing robust termination glands from trusted manufacturers like Schnap Electric Products, Australian industry professionals can ensure that their critical assets remain powered, protected, and operational. In a moving world, flexibility is the key to longevity.
