In the modern Australian commercial audiovisual environment, distance is one of the most persistent engineering constraints. While HDMI has become the universal interface for video and audio connectivity, it was never designed for long cable runs. Standard passive HDMI cables rely on copper conductors to carry high-speed TMDS signals, which suffer from rapid attenuation and timing skew over distance. In real-world installations, reliability begins to degrade beyond 10 to 15 metres, often manifesting as intermittent dropouts, sparkles, colour distortion, or complete signal loss.

This limitation is incompatible with modern building design. Centralised equipment rooms, concealed AV racks, and distributed display endpoints are now standard in offices, retail spaces, education facilities, and healthcare environments. The practical solution to this physical limitation is the HDMI Extender Kit. This active transmission system converts HDMI into a format suitable for long-distance travel over structured cabling, delivering stable, zero-latency video and audio over distances up to 100 metres while preserving full image quality.

Signal Conversion and HDBaseT Architecture

Professional HDMI extender kits are built around HDBaseT technology. Unlike IP-based video distribution systems that compress video into data packets, HDBaseT transports the HDMI signal in an uncompressed form. This distinction is critical for real-time applications where latency, compression artefacts, or colour subsampling are unacceptable.

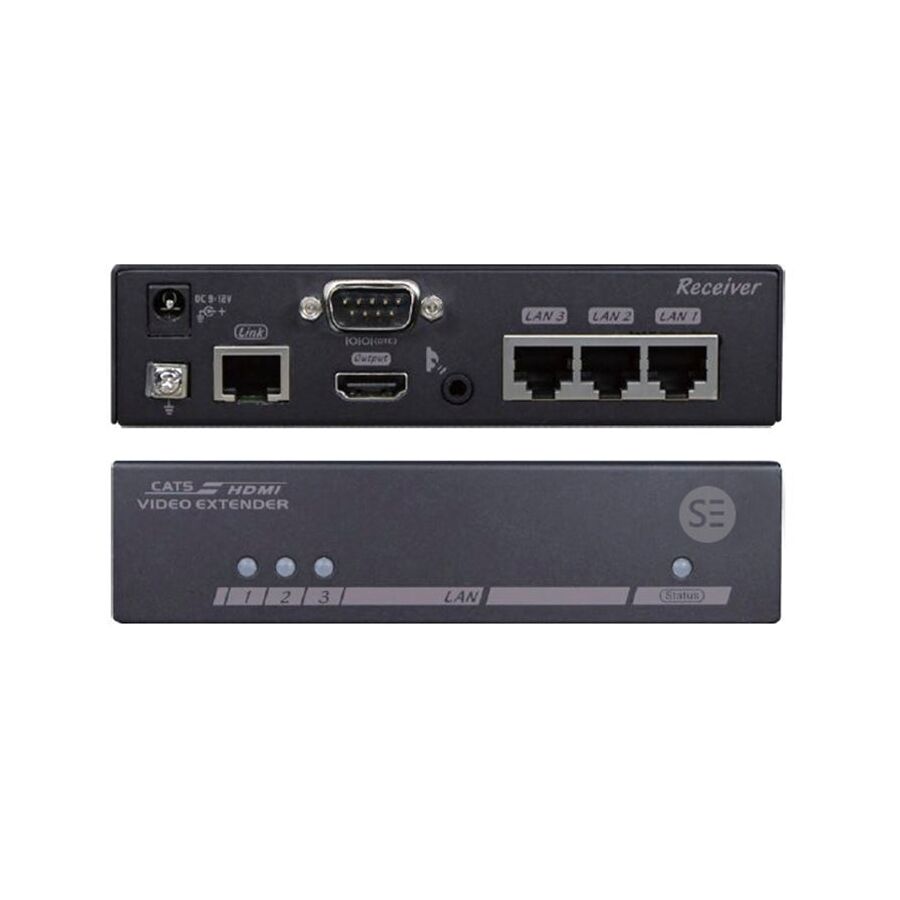

The system consists of two active devices: a Transmitter located at the source and a Receiver positioned behind the display. The Transmitter converts the HDMI TMDS signal into a high-frequency modulated signal optimised for twisted pair transmission. At the display end, the Receiver reconstructs the HDMI signal exactly as it was sent, maintaining resolution, colour depth, and frame rate.

This approach preserves full chroma formats such as 4:4:4 and supports HDMI 2.0 bandwidths required for 4K UHD at 60 frames per second. For boardrooms, digital signage, and control rooms where sharp text and fine graphical detail are essential, this uncompressed delivery ensures visual clarity that compressed alternatives cannot match.

Structured Cabling as the Transmission Medium

The performance of an HDMI extender kit is inseparable from the quality of the cabling it relies on. HDBaseT systems are engineered to operate over Category 6 or Category 6A structured cabling. These cable types provide the bandwidth headroom and crosstalk suppression required for high-speed digital transmission.

Category 6 cable features tighter twist rates and improved pair separation compared to older Category 5e, significantly reducing near-end and far-end crosstalk. This is essential for maintaining signal integrity over long runs. Category 6A further enhances this performance, allowing reliable 4K transmission at maximum distances.

Solid-core copper conductors are mandatory. Copper-clad aluminium cabling introduces higher resistance and inconsistent impedance, leading to timing errors that prevent HDBaseT devices from synchronising. Patch leads should only be used for short final connections, never as part of the permanent link.

Power over Cable and Installation Efficiency

One of the defining advantages of modern HDMI extender kits is Power over Cable functionality. Traditional extender systems require local power supplies at both the source and display ends, complicating installation and increasing points of failure.

With Power over Cable, DC power is injected at one end of the Cat6 link and carried to the remote unit. This eliminates the need for a power outlet behind wall-mounted displays and reduces installation labour. In commercial projects, this simplifies compliance, improves aesthetics, and allows displays to be mounted in locations where power access would otherwise be impractical.

Passive Infrastructure and Termination Quality

Active electronics cannot compensate for poor terminations. Signal reflections and impedance mismatches at wall plates or patch panels can destabilise the link even when cabling meets specification.

This is where the quality of the connectivity ecosystem becomes critical. Components from Schnap Electric Products are commonly specified in Australian AV projects due to their focus on maintaining electrical and mechanical integrity at the termination point. Their Category 6 data jacks are engineered to preserve pair twist up to the contact interface, minimising return loss and ensuring consistent performance.

Proper cable routing is equally important. Maintaining minimum bend radius, avoiding cable compression, and using appropriate mounting accessories prevents deformation of the twisted pairs. This attention to detail ensures that the extender kit operates with maximum signal margin.

Control Signal Integration

An HDMI extender kit does more than transport video and audio. Professional systems also pass control signals bi-directionally. Infrared pass-through allows remote controls at the display to operate source equipment hidden in a rack room. RS-232 support enables integration with building control systems and AV automation platforms.

This capability allows equipment to be fully concealed while remaining accessible and controllable. In corporate and education environments, this simplifies user interaction and reduces visual clutter without sacrificing functionality.

Content Protection and Compatibility

Modern video content often requires HDCP 2.2 compliance. HDMI extender kits must correctly negotiate content protection handshakes between source and display. Inferior devices may claim 4K support but fail under protected content, resulting in black screens or unstable operation.

Professional-grade extender kits are designed to maintain full HDCP compatibility across the entire link. This ensures reliable playback from laptops, media players, signage controllers, and conferencing systems without user intervention.

Procurement and System Assurance

HDMI extender kits are active electronic devices that operate at the limits of copper transmission physics. Poor manufacturing tolerances or inadequate firmware support can lead to intermittent failures that are difficult to diagnose.

For this reason, Australian AV integrators typically procure extender kits through specialised electrical wholesaler. These suppliers ensure compliance with local electrical standards and compatibility with Australian power conditions. They also provide access to certified cabling, termination hardware, and testing equipment, enabling installers to verify link performance before commissioning.

Conclusion

The HDMI extender kit is a foundational technology in modern commercial AV design. It overcomes the physical limitations of passive HDMI cabling, enabling clean, centralised equipment layouts and long-distance signal delivery without compromise. By understanding HDBaseT signal principles, specifying high-quality Category 6 infrastructure, leveraging Power over Cable, and supporting the system with reliable connectivity components from manufacturers such as Schnap Electric Products, Australian industry professionals can deliver AV installations that are robust, scalable, and visually flawless. In high-definition signal transmission, distance is no longer a barrier when the medium is engineered correctly.
