10km Range Sector Antenna (20dBi 90° 5GHz) for 57MM-BS01

Sector Antenna 10km Range | 20dBi 90° 5GHz | Weather-Resistant by Matchmaster

BRAND: Matchmaster

SKU: 57MM-SA01

$444.10 List price: $537.60

+ −

30 Days Return Delivery Options

Sector antenna with 20dBi gain and 90-degree beamwidth—ideal for long-distance wireless communication. Built for outdoor networks, with weather-resistant housing and 5GHz frequency operation.

Description
Attachments

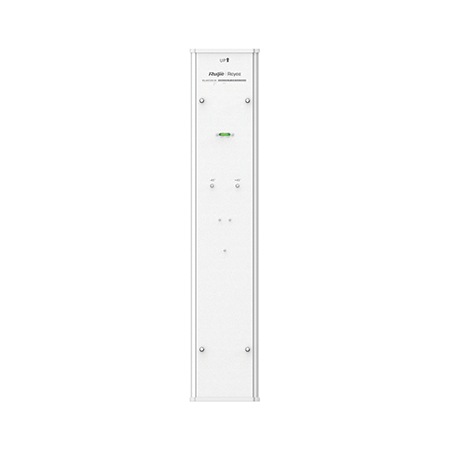

Product Name/Title: 10km Range Sector Antenna (20dBi 90° 5GHz) for 57MM-BS01

Brand: Matchmaster

SKU: 57MM-SA01

Alternatively Known As: 5GHz Sector Antenna, 20dBi Antenna, Long Range Wireless Antenna

Technical Specifications

Working Distance: 10 KM
Gain: 20 dBi
Angle: 90° horizontal, 7° vertical
Capacity: 5 GHz
IP Rating: IP55
Dimensions (H x L x W): 300mm x 200mm x 200mm
Weight: 1.5 kg

Key Features

Semi-directional 5 GHz antenna with 20 dBi gain
90° horizontal and 7° vertical link
Supports PTP and PTMP technology for up to 32 clients
Free cloud management for setup and remote monitoring
Includes free site survey tool with spectrum scan and link optimisation
One-touch pairing system

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Linking buildings
Farms
Mining sites
Creating long-range wireless links

Environmental Benefits

Reduces the need for expensive fibre backhauls, promoting cost-effective networking solutions.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster 10km Range Sector Antenna (20dBi 90° 5GHz) is available now for immediate purchase. Ideal for networking and data applications.

Brochure (57mm-sa01_brochure.pdf, 116 Kb) [Download]

Wireless Bridge Installation Guide (ruijie-reyee-series-wireless-bridge-implementation-cookbook-v1-5.pdf, 6,451 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
