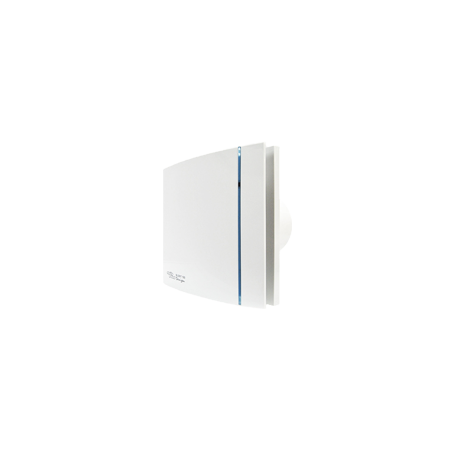

Silent Wall Mounted Fan 100mm | Timer & Humidistat | White by Fantech

BRAND: Fantech
SKU: SILDES100CHZ3C-W
$230.60 List price: $300.60
+
Silent wall mounted fan with 100mm size and integrated timer and humidistat—ideal for bathrooms and modern office spaces. Built for quiet operation, with energy-efficient design and easy wall or ceiling installation.

Product Name/Title: Silent Design wall mounted fan 100mm c/w timer and humidistat White

Brand: Fantech

SKU: SILDES100CHZ3C-W

Alternatively Known As: Bathroom Exhaust Fan, Ceiling Fan, Wall Fan, Humidistat Fan

Performance Curve

DrawCurve.ashx?curve1=BGMFIHHDJAFFBGCNRBJBGMIAEGAJHGNEJDEGAMFIECFHENRDJEJACGGMGHEHJNBBJFBFFEDDMHDDHNRBDGCAJBEBJFMBJHNANANANANANANAOAMAACHDGBFGDEFCDIJNAMACCJIDHBDDAAAAGI&curve1label=100&curve2=EIMCBFBIIAIBCHDNRBHBIMFICBEHIBGBNBADEIBMCBEFCJGJNRCEAHDCCMDJIJHAGNBCDDJDABMFBCDAENANANANANANANANAOAMAADBGGBCDGJGIBCCNAMAEIJIAGFIJAIFFCI&curve2label=200&curve3=FBMCEJBEDAEGGJJNFFBMGGIHFDCJBFGNRECBGEMJGBEFHIDNIDIJGAMJABIIAFJNRGAGEIBEMCDDBEIINANANANANANANANAOAMABDHIFABGFJCFDBDNAMAICEBAECFCIBEDHD&curve3label=300&activecurve=1&dx=&dy=&width=390

Technical Specifications
  • Electricity supply: single-phase 230V, 50Hz
  • Motor type: shaded-pole induction motor
  • IP Rating: IP45
  • Maximum ambient temperature: 40°C
  • Class II insulation
  • Internal thermal protection
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 1.5 kg
Key Features
  • Quiet operation due to advanced vibration absorbing design.
  • Suitable for wall and ceiling installations.
  • Includes backdraft damper and adjustable run-on timer and humidistat.
  • Available in multiple sizes to fit 100, 125, and 150mm duct.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Residential: Bathrooms, ensuites, toilets
  • Commercial: Modern office spaces, retail environments
Standards & Compliance
  • Complies with ISO5801 for air flow and ISO13347-3 for noise.
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

12 months warranty against manufacturing defects.

Available Now

The Fantech Silent Design Wall Mounted Fan 100mm with Timer and Humidistat is available now for immediate purchase. Ideal for modern bathrooms and commercial applications.
