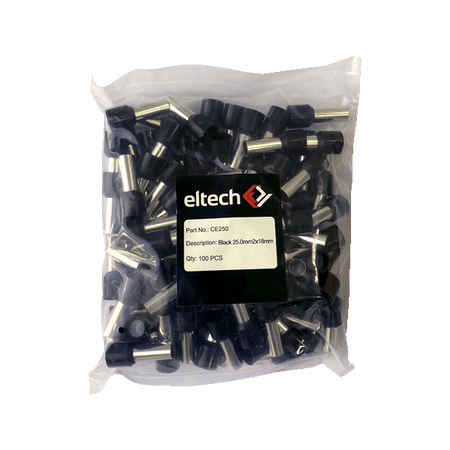

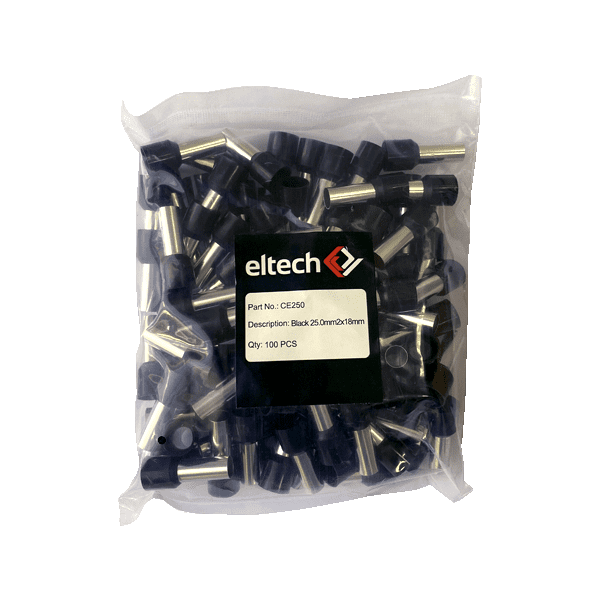

Single Cord End Ferrule 25mm² x 25mm Black Pack of 100 Eltech

BRAND: Eltech
SKU: CE25025
$70.20 List price: $93.60
+ −
30 Days Return Electricians Unlock Trade Access

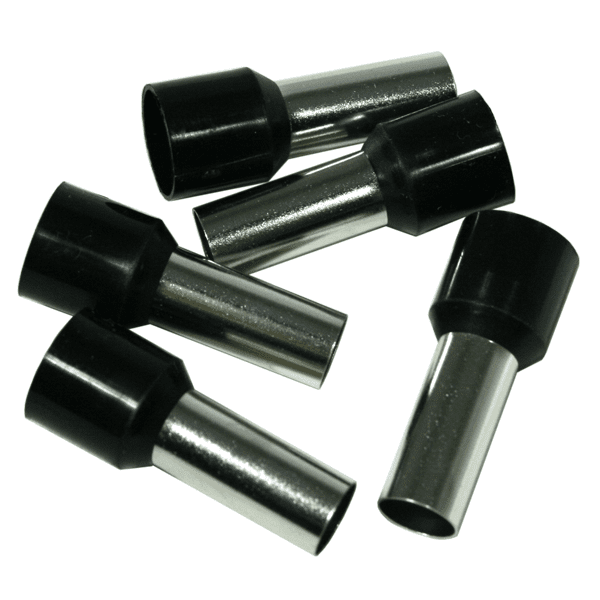

Eltech single cord end ferrule features 25mm² conductor size, 25mm barrel length and black colour. Ideal for flexible cable termination.

Alternatively Known As: Cord End Terminal, Bootlace Ferrule, Bootlace Connector

Technical Specifications
  • Conductor Size: 25 mm²
  • Overall Length (L): 29 mm
  • Barrel Length (L₂): 16 mm
  • Inner Sleeve Diameter (D₁): 7.3 mm
  • Insulation Outer Diameter (D₂): 11.2 mm
  • Sleeve Material: Polyamide 66 (French colour code)
  • Tube Material: Tin‑plated copper
  • Dimensions (H x L x W): 29mm x 29mm x 11.2mm
  • Weight: 0.1 kg
Key Features
  • Neat, secure termination of stranded flexible conductors
  • Tin‑plated high‑conductivity copper tube prevents strand fraying
  • Polyamide 66 insulating sleeve for mechanical protection and clarity
  • French colour‑coded black for quick 25 mm² identification
Applications
  • Termination of 25 mm² stranded conductors into screw‑clamp terminals
  • Use in end‑of‑line wiring blocks, circuit breakers, switchboards
  • Ensuring reliable, vibration‑resistant connections in industrial and residential electrical installations
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (installation standard for electrical wiring)
Environmental Benefits
  • Tin‑plated copper is recyclable
  • Prevents conductor strand damage, reducing rework and waste
Warranty Information

Available Now

Available through Eltech and authorised electrical distributors in Australia, sold in packs of 100.
