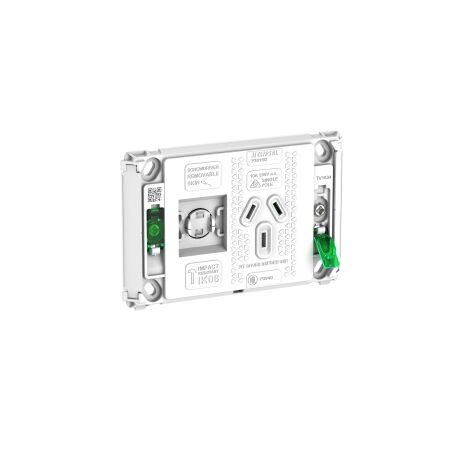

Single GPO 10A Horizontal Pro Series 250V White Clipsal

BRAND: Clipsal
SKU: CLIP3015G
$7.20 List price: $8.90
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Pro Series single power point features 10A in white. Suited for AU residential and commercial switchboards.
Technical Specifications
  • Rated current: 10A at 250V AC 50Hz
  • Device presentation: mechanism with fixing frame
  • Outlet poles configuration: 2P + E with shutter
  • Clamping connection capacity: 1 x 2.5...4 x 2.5 mm² for rigid or stranded cables
  • Wire stripping length: 16 mm
  • Material: PC (polycarbonate), PP (polypropylene), POM (polyoxymethylene)
  • Ambient air temperature for operation: 0...45 °C
  • Relative humidity: 10...95%
  • Dimensions (H x L x W): 72mm x 36mm x 112mm
  • Weight: 0.1 kg
Key Features
  • Designed for commercial use with screw covers to prevent access to screws after installation.
  • Flush mounting with a horizontal installation direction.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Commercial: Offices, retail spaces, and other professional environments
Standards & Compliance
  • Complies with AS/NZ 3112 for safety and performance standards.
Environmental Benefits
  • Compliant with RoHS directives and made with environmentally friendly materials.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Pro Series Single Power Point Grid is available now for immediate purchase. Ideal for commercial applications.

P3015G (P3015G, 220 Kb) [Download]
