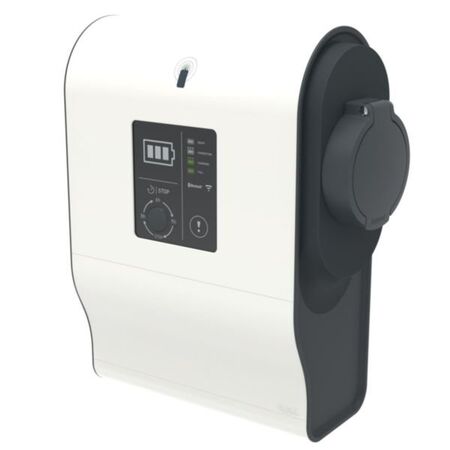

Single Phase Green'up EV Charging 3.7kW 4.6kW IP44 Legrand
Designed for single-phase EV charging with adjustable 3.7kW to 4.6kW output for residential and commercial installations. Features IP44 protection, Bluetooth, WiFi, Modbus, OCPP 1.6J communication and integrated RFID access. Built with IK08 impact resistance, embedded 6mA DC residual current protection and complies with AS/NZS 3000, AS/NZS 3112 and AS/NZS 3820 standards. Scroll down to view the complete technical specifications, compliance details and installation requirements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal connection power: 3.7 kW
- Maximum power per charging point: 4.6 kW
- Single-phase installation
- Number of charging units: 1
- Socket outlet Type 2: 1
- Housing material: Plastic
- Degree of protection: IP44
- Impact strength: IK08
- Operating temperature: -25°C to 50°C
- Storage temperature: -25°C to 70°C
- Nominal voltage: 220-240 V
- Communication: Bluetooth, Modbus, Network, WiFi, OCPP 1.6J
- Programmable with web software
- Supports RFID badge access (13.56 MHz)
- Deferred start charging (3/6/9 hours)
- Embedded 6mA DC residual current protection
- Dimensions (H x L x W): 365mm x 140mm x 295mm
- Weight: 7 kg
Key Features
- Single-phase charging station for one electric vehicle
- Mode 3 charging with power adjustable between 3.7 kW and 4.6 kW
- Current adjustable between 16A and 20A
- Embedded communication kit and RFID reader for multi-user access control
- Remote control capability via IP or WiFi network
- 6mA DC residual current protection allowing use with upstream RCD type A or F
- Deferred start charging options (3, 6, or 9 hours)
- Compatible with OCPP 1.6J protocol for operator supervision
- Bluetooth application for easy updates
- IP44 rated for protection against water splashes
- IK08 impact resistance rating
- Operating temperature range from -25°C to 50°C
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with existing electrical infrastructure.
Applications
- Residential electric vehicle charging
- Commercial electric vehicle charging stations
- Public and private parking areas for electric cars
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports electric vehicle adoption reducing fossil fuel consumption
- Energy-efficient charging with adjustable power settings to optimize electricity use
- Remote management reduces unnecessary energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty duration and terms.
Available Now
The Legrand Single-phase Plastic Green'up Premium EV Charging Station is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
FAQ
Q: What charging power does the Single Phase Green'up EV Charging Station support?
A: It provides adjustable charging output from 3.7kW up to 4.6kW for single-phase electric vehicle charging.
Q: Is this EV charging station suitable for Australian installations?
A: Yes. The product is shown as complying with AS/NZS 3000, AS/NZS 3112 and AS/NZS 3820 standards and is intended for installation by a qualified electrician.
