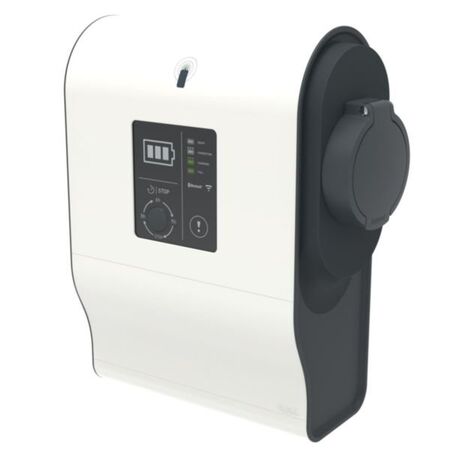

Single Phase Green'up EV Charging Station 7.4kW Power 3 Legrand

BRAND: Legrand
SKU: 59006
$2,683.00 List price: $3,343.40
1 EA ($2,683.00 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Designed for single-phase electric vehicle charging with 7.4kW output and adjustable charging levels for residential and commercial applications. Features IP44 protection, Bluetooth, WiFi, Modbus, OCPP 1.6J communication and integrated RFID access. Built with IK08 impact resistance, embedded 6mA DC residual current protection and complies with AS/NZS 3000, AS/NZS 3112 and AS/NZS 3820 standards. Continue below for the full specification sheet, supported features and installation guidance.
Technical Specifications
  • Nominal connection power: 7.4 kW
  • Single-phase installation side connection
  • Number of charging units: 1
  • Number of socket outlets Type 2: 1
  • Protection: 6mA DC residual current protection embedded
  • Housing material: Plastic
  • Degree of protection: IP44
  • Impact strength: IK08
  • Operating temperature: -25 to 50 °C
  • Storage temperature: -25 to 70 °C
  • Nominal voltage: 220-240 V
  • Communication protocols: Bluetooth, Modbus, Network, WiFi, OCPP 1.6J
  • Programmable with web software
  • Supports RFID badge access (13.56 MHz)
  • Deferred start charging: 3, 6, or 9 hours
  • Adjustable power levels: 3.7/4.6/5.7/7.4 kW or 16/20/25/32 A
  • Dimensions (H x L x W): 365mm x 140mm x 295mm
  • Weight: 5 kg
Key Features
  • Single-phase charging station with 7.4 kW nominal power
  • Mode 3 charging compatible with one electric vehicle
  • Embedded communication kit and RFID reader for multi-user access control
  • Remote control via IP or WiFi network using smartphone, tablet, or PC
  • Protection against residual direct current with 6mA DC embedded
  • Adjustable power delivery settings (3.7/4.6/5.7/7.4 kW or 16/20/25/32 A)
  • Deferred start charging options (3/6/9 hours)
  • Wall mounting kit included; optional floor mounting pedestal available
  • IP44 rated for protection against water splashes and dust
  • IK08 impact resistance rating
  • Supports OCPP 1.6J protocol for operator supervision
  • Programmable and interoperable with Bluetooth, Modbus, network, and WiFi
Professional Installation Requirements
  • Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper network integration.
Applications
  • Residential electric vehicle charging
  • Commercial electric vehicle charging stations
  • Public and private parking areas for electric cars
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Supports electric vehicle adoption reducing fossil fuel consumption
  • Energy-efficient charging with adjustable power settings
  • Remote management reduces unnecessary energy use
  • Durable plastic housing extends product lifespan
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.

Available Now

The Legrand Single-phase Plastic Green'up Premium EV Charging Station 7.4kW 32A is available for immediate purchase. Ideal for residential and commercial electric vehicle charging applications.

FAQ

Q: What charging capacity does this EV charging station provide?
A: The station delivers 7.4kW nominal charging power with adjustable charging levels of 3.7, 4.6, 5.7 and 7.4kW.

Q: Is this charging station suitable for Australian electrical installations?
A: Yes. It is shown as complying with AS/NZS 3000, AS/NZS 3112 and AS/NZS 3820 standards and should be installed by a qualified electrician.


Match this charger with an EV charging cable Type 2 to Type 2 7m 1 Phase for flexible vehicle charging installations.
Add an EV charging cable holder to keep the charging lead protected and neatly stored when not in use.
Use an EV charging station pedestal floor standing aluminum where a freestanding installation is preferred instead of wall mounting.

Understand key installation considerations by reading the commercial EV charger selection guide before choosing charging equipment.
