Small Electrical Distributor | 63A | 18 Modules | Transparent Door by Hager

BRAND: :hager
SKU: VS118TT
$75.30 List price: $96.30
+

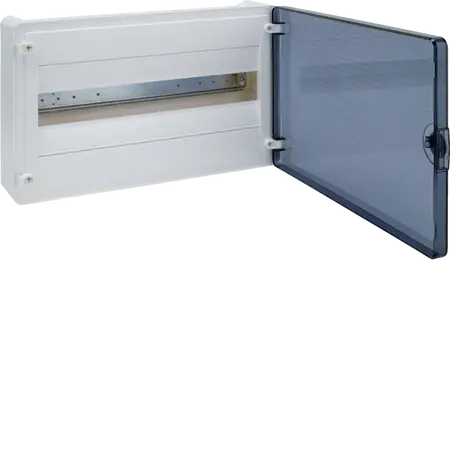

Small electrical distributor with 63A rated current and capacity for 18 modules—ideal for residential and commercial spaces. Built for easy installation with surface mounting and a transparent door for component visibility.

Product Name/Title: Small distributor,golf,surface,1row,IP40,18M,MS-terminal,ANZ,N+PE,transpare door

Brand: Hager

SKU: VS118TT

Alternatively Known As: Hager Golf Distributor, Surface Mounted Electrical Enclosure, IP40 Load Centre

Technical Specifications
  • Nominal voltage: 400V
  • Rated current: 80A
  • Number of rails: 1
  • Number of rows: 1
  • Number of modules: 18
  • Material: Plastic, Pure white (RAL 9010)
  • Impact resistance: IK07
  • Ingress Protection: IP40
  • Dimensions (H x L x W): 252mm x 99mm x 390mm
  • Weight: 2.5 kg
Key Features
  • IP40 rated for protection against solid objects larger than 1mm.
  • Transparent door for easy visibility of internal components.
  • Rated current of 80A with capacity for 18 modules.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Small offices and retail spaces
  • General: Surface mounting for electrical distribution
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Small Distributor Golf Surface 1 Row IP40 is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
