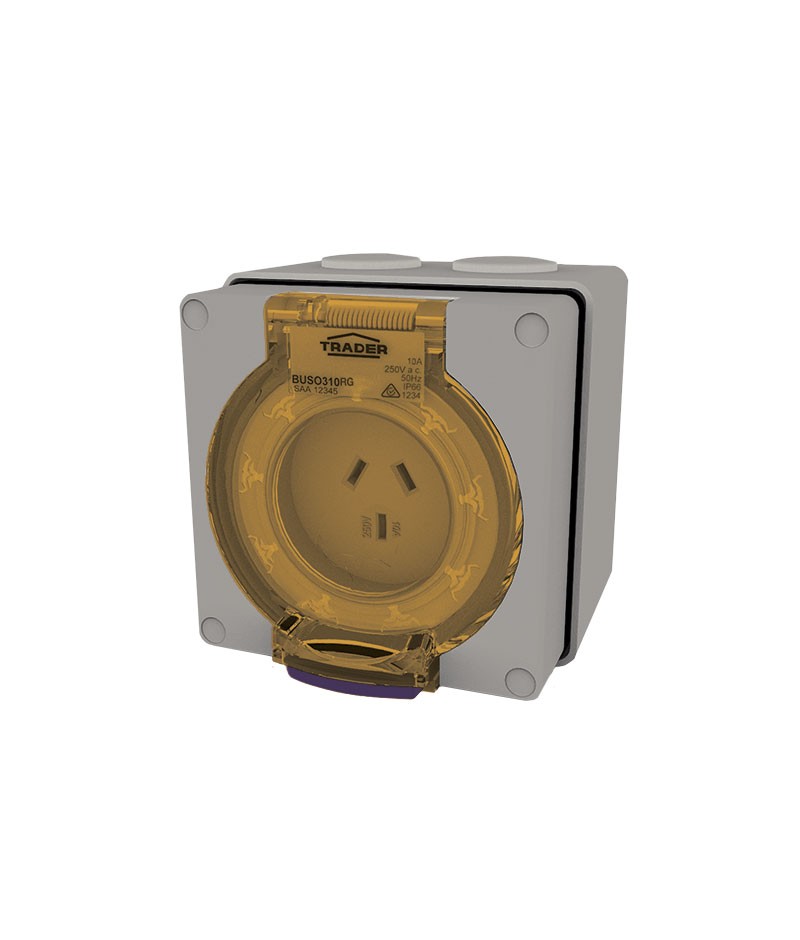

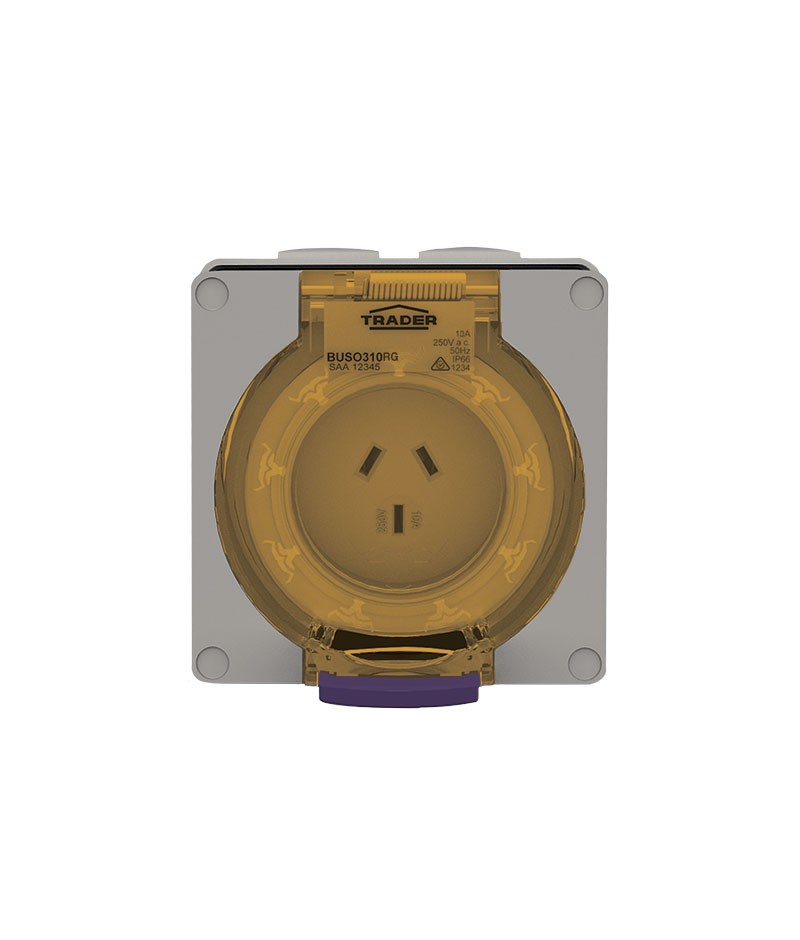

Socket Outlet IP66 10A 250V 3 Flat Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 10A 250V capacity and 3 flat pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo Industrial Socket Outlet, Buffalo BUSO310, IP66 Chemical‑Resistant Socket

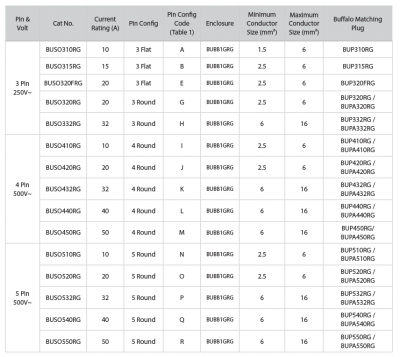

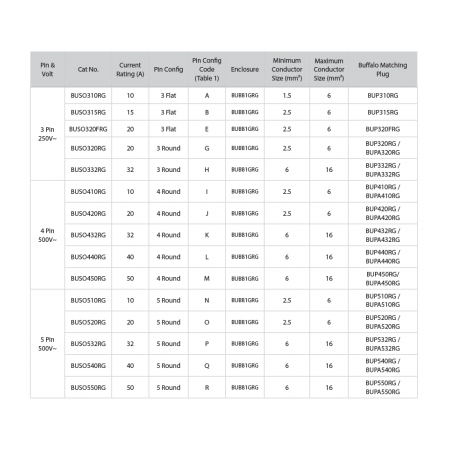

Technical Specifications
- Current Rating: 10 A
- Voltage: 250 V AC
- Pin Configuration: 3 flat pins
- Ingress Protection: IP66
- Conductor Size: minimum 1.5 mm² — maximum 6 mm²

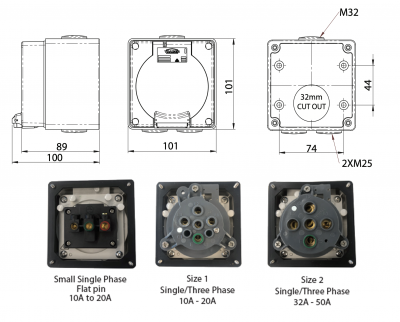

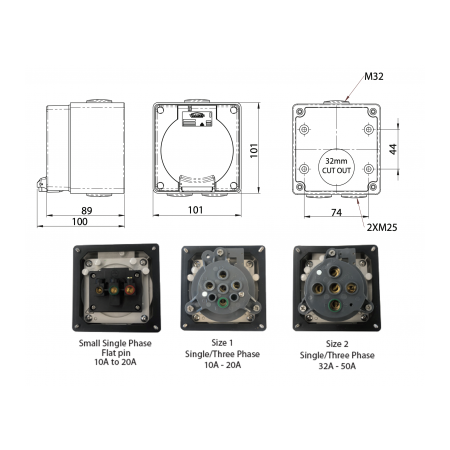

- Dimensions (H x L x W): 100mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Robust chemical‑resistant construction
- Spring‑loaded transparent flap sealing to IP66
- Threaded surround accepts plug locking ring for secure IP66 seal
- Wide 180° flap opening for easy plug access
- Ideal for wash‑down and harsh industrial environments
Professional Installation Requirements
- Installation by a licensed electrician is recommended for compliance with electrical safety standards.
Applications
- Industrial wash‑down areas
- Manufacturing and process plants with chemical exposure
- Outdoor or damp environments requiring IP66 protection
Standards & Compliance
- Complies with AS/NZS 60529 for IP ingress protection ratings
- Complies with AS/NZS 3112 for flat‑pin plug/socket configuration
Environmental Benefits
- Chemical‑resistant materials extend product lifespan, reducing replacements
Warranty Information
Backed by Trader’s 10‑year general warranty on Industrial Switchgear IP66 range.
Available Now
Available through authorised Australian electrical wholesalers and distributors.
