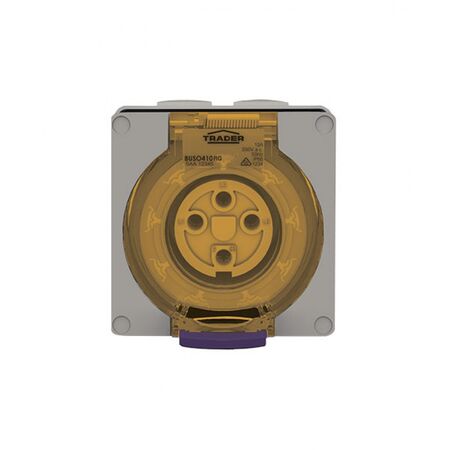

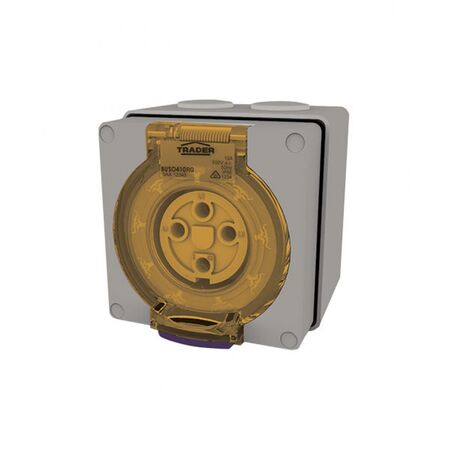

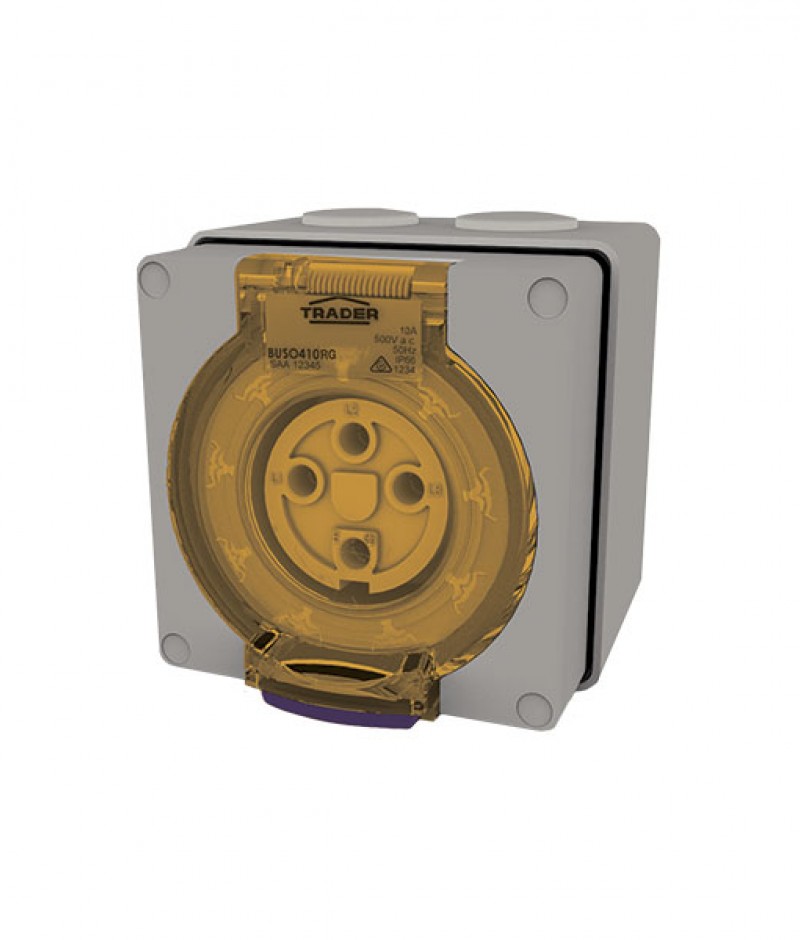

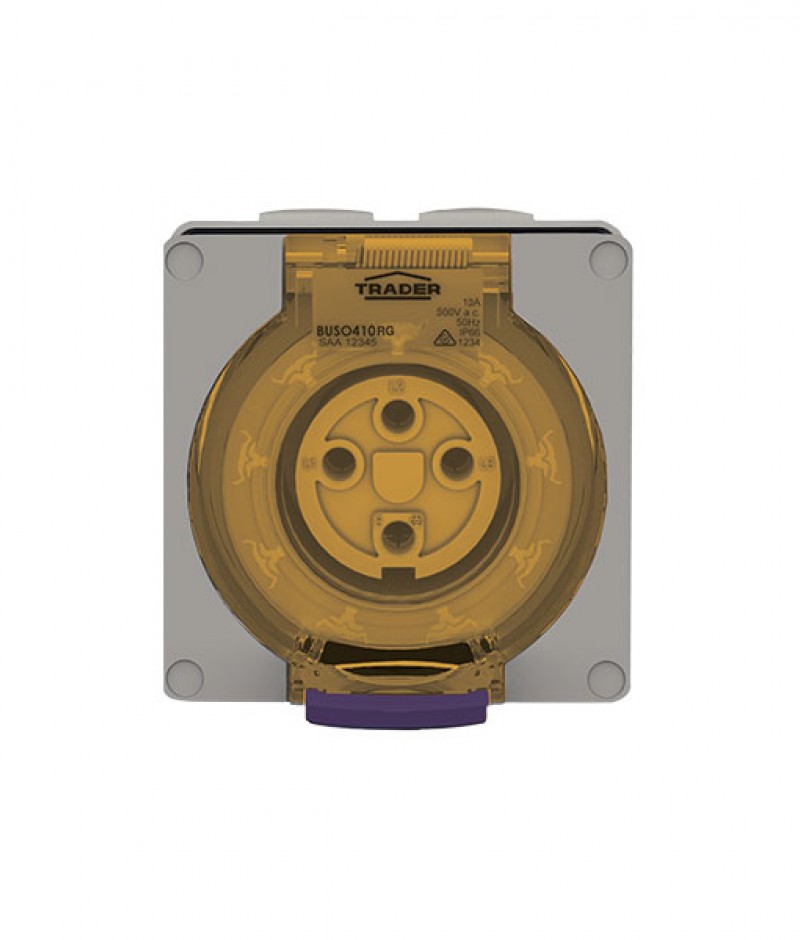

Socket Outlet IP66 10A 500V 4 Round Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 10A 500V capacity and 4 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo Socket IP66 10A 500V 4‑Pin Outlet, BUSO410

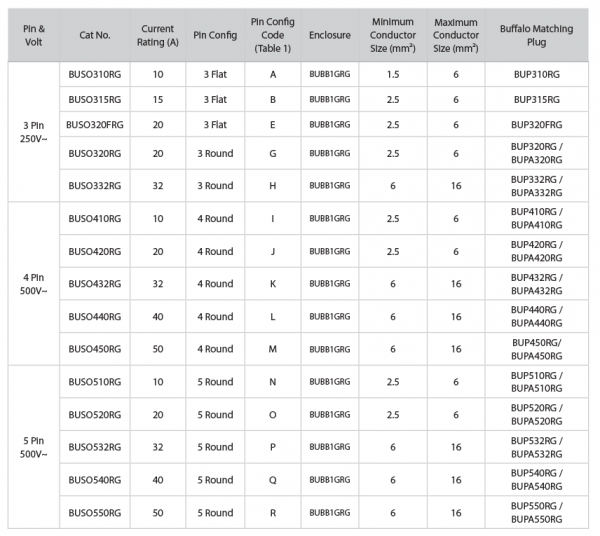

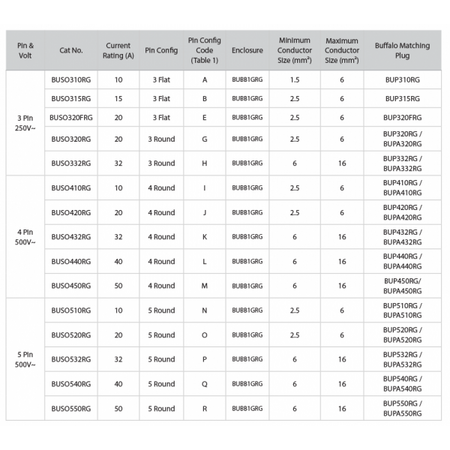

Technical Specifications
- Rated Current: 10 A
- Rated Voltage: 500 V AC
- Protection Rating: IP66
- Pin Configuration: 4 round pins
- Cable Conductor Size: 2.5 mm² to 6 mm²

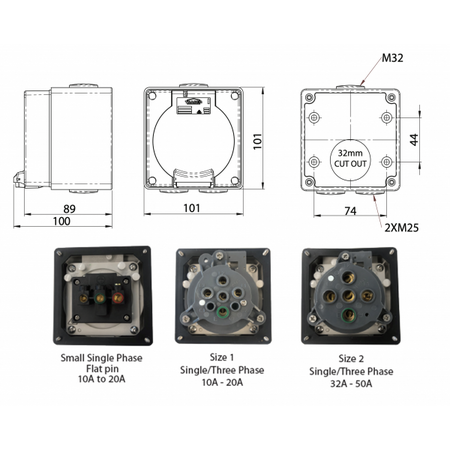

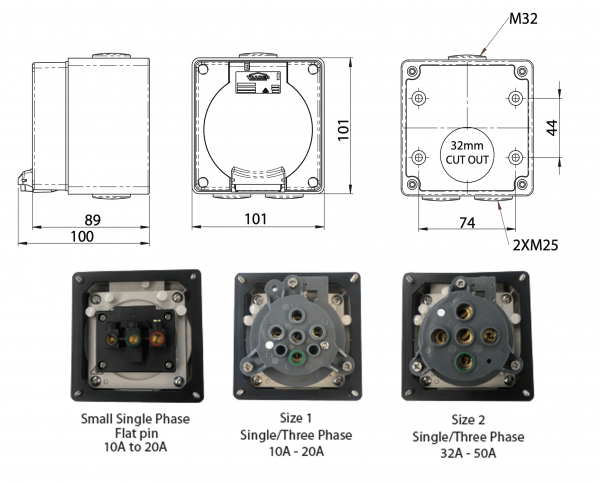

- Dimensions (H x L x W): 60mm x 100mm x 100mm
- Weight: 0.75 kg
Key Features
- Chemical‑resistant construction for harsh industrial environments
- Spring‑loaded transparent flap for dust and water sealing to IP66
- Threaded surround accepts plug locking rings to maintain IP rating
- 4‑round‑pin 500 V configuration suited for industrial power connections
Professional Installation Requirements
- Installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and correct wiring.
Applications
- Industrial wash‑down areas
- Outdoor and harsh environments requiring dust‑tight and watertight socket
- Chemical processing plants and alkaline/caustic environments
Standards & Compliance
- AS/NZS 3123 (plugs and socket‑outlets)
Environmental Benefits
- Durable IP66 housing reduces replacement frequency
- Robust design minimises maintenance‑related waste
Warranty Information
10 year warranty (Trader Buffalo standard)
Available Now
Available through authorised Australian distributors.
