Trade Discount 25%

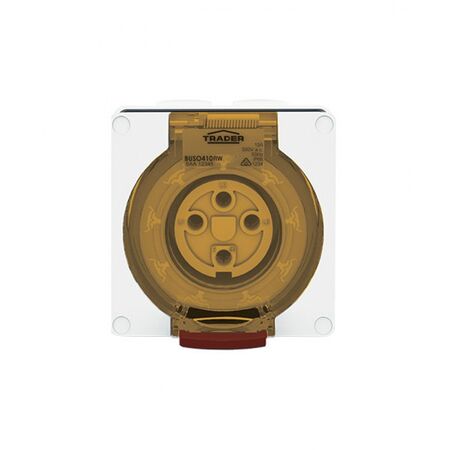

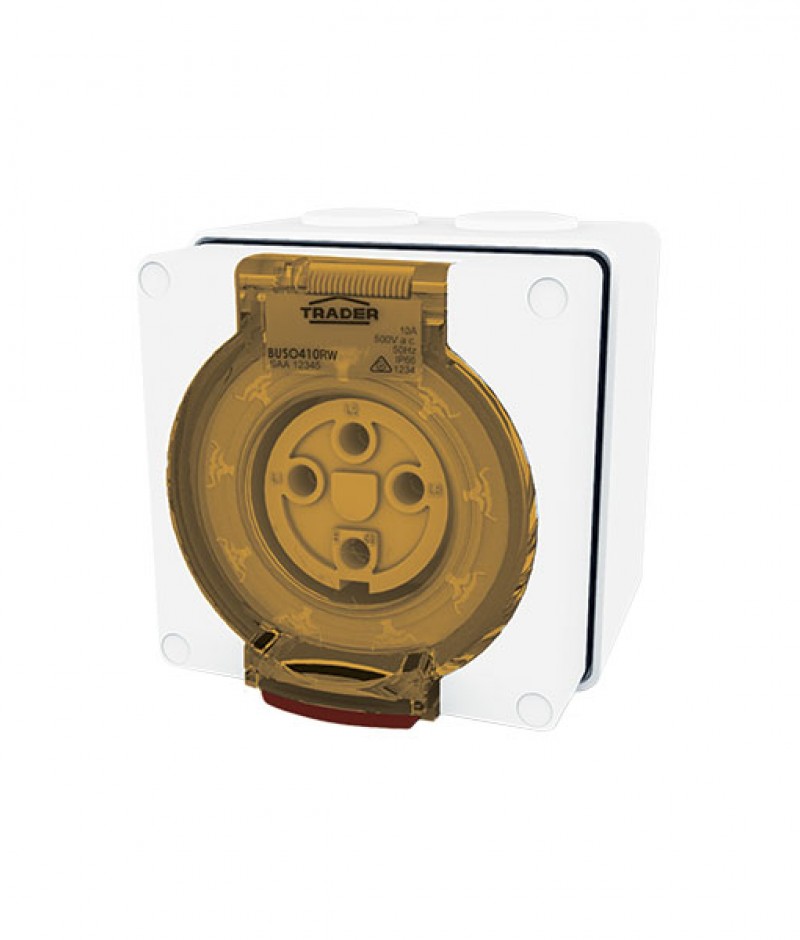

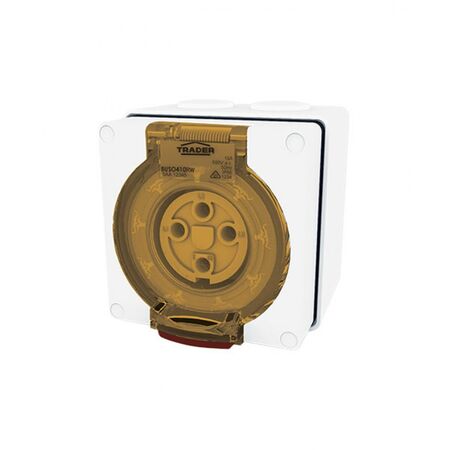

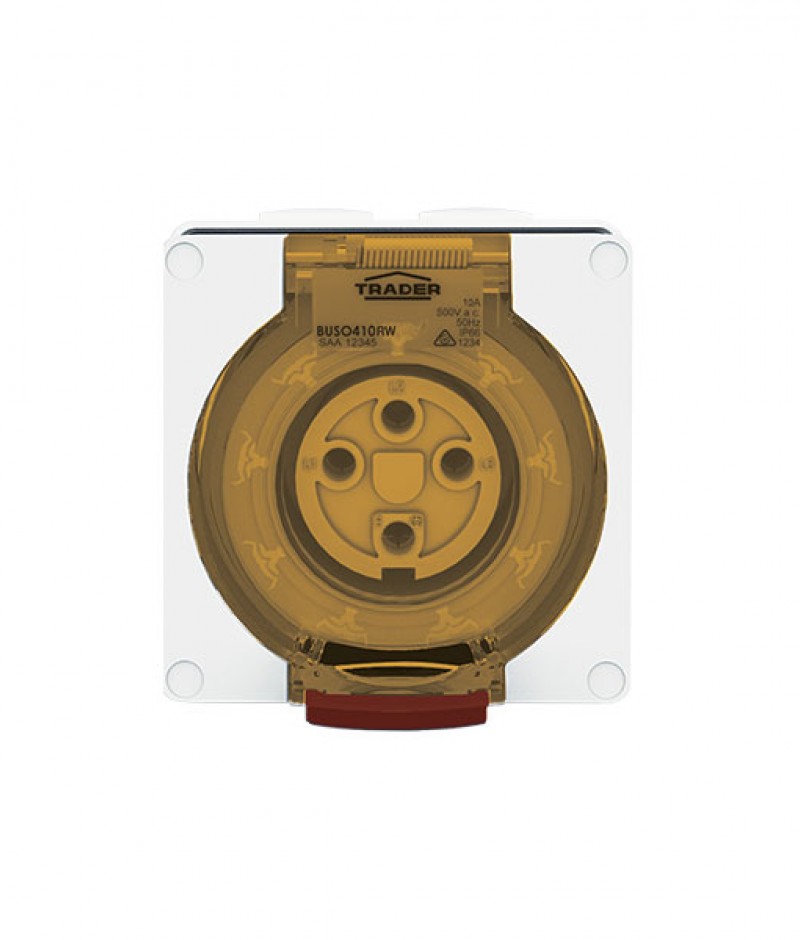

Socket Outlet IP66 10A 500V 4 Round Pin Buffalo White Trader
Trader socket outlet features IP66 weatherproof rating, 10A 500V capacity and 4 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo 4‐Round Pin Socket Outlet, BUSO410RW, Buffalo Heavy‑Duty IP66 Socket
Technical Specifications
- Rated Current: 10 A
- Rated Voltage: 500 V AC
- Pin Configuration: 4 round pins
- Protection Rating: IP66
- Cable Connection: Threaded surround accepts locking ring (secure, IP66)
- Conductor Capacity: 2.5 mm² minimum to 6 mm² maximum

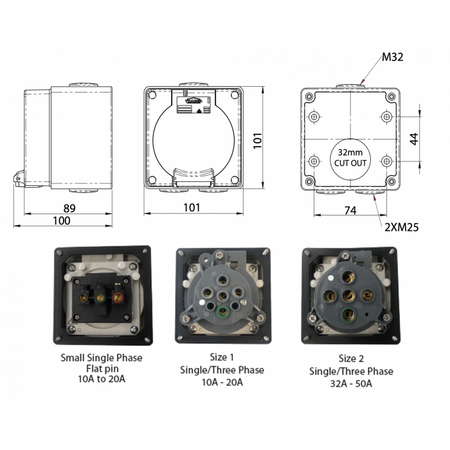

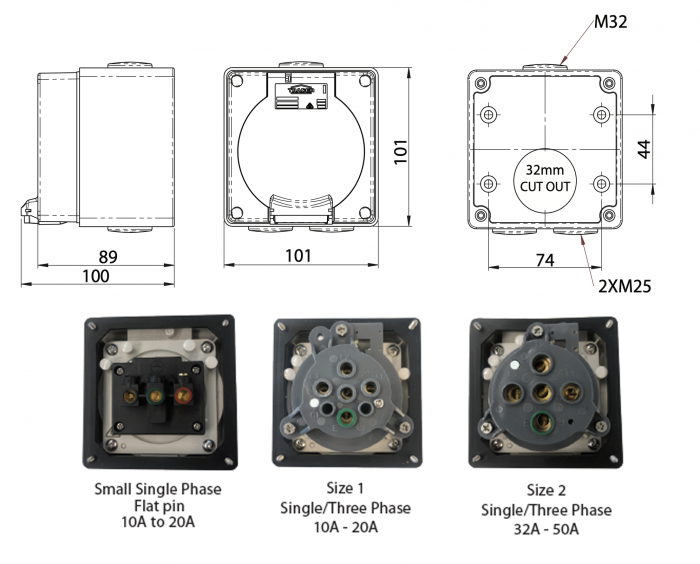

- Dimensions (H x L x W): 107mm x 101mm x 102mm
- Weight: 0.75 kg
Key Features
- Chemical‑resistant construction suitable for harsh or wash‑down environments
- Spring‑loaded transparent flap self‑latching to maintain IP66 rating
- Threaded socket surround accepts plug locking rings for secure fitment
- Robust heavy‑duty design for industrial and outdoor use
- Australian standard compliant pin configuration and dimensions (AS/NZS 3112 & AS/NZS 3123)
Applications
- Industrial wash‑down areas
- Outdoor and harsh environment power outlets
- Factories and warehouses requiring dust‑ and water‑proof connections
- Commercial sites exposed to moisture or chemical spray
Standards & Compliance
- Complies with AS/NZS 3112 (pin configuration)
- Complies with AS/NZS 3123 (plugs, socket‑outlets and couplers for industrial applications)
- IP66 according to AS 60529
Environmental Benefits
- Mercury‑free design (no hazardous materials)
- Extended durability in harsh environments reduces replacement waste
Warranty Information
10 year manufacturer’s warranty (Trader Buffalo range)
Available Now
Available through authorised Australian electrical distributors and wholesale suppliers.
