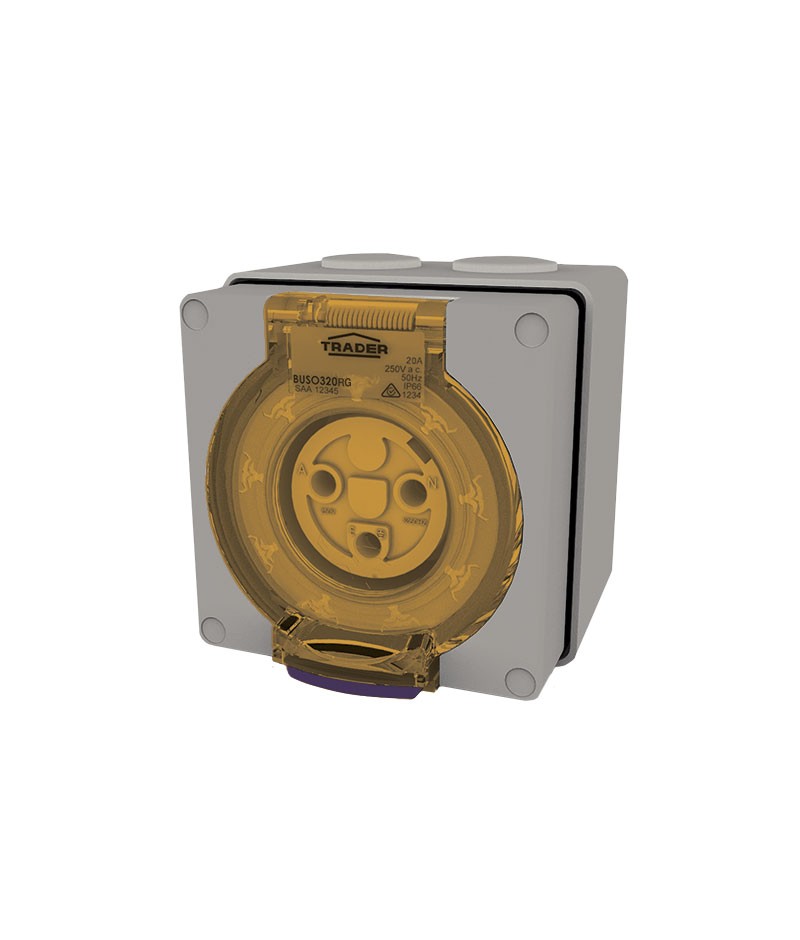

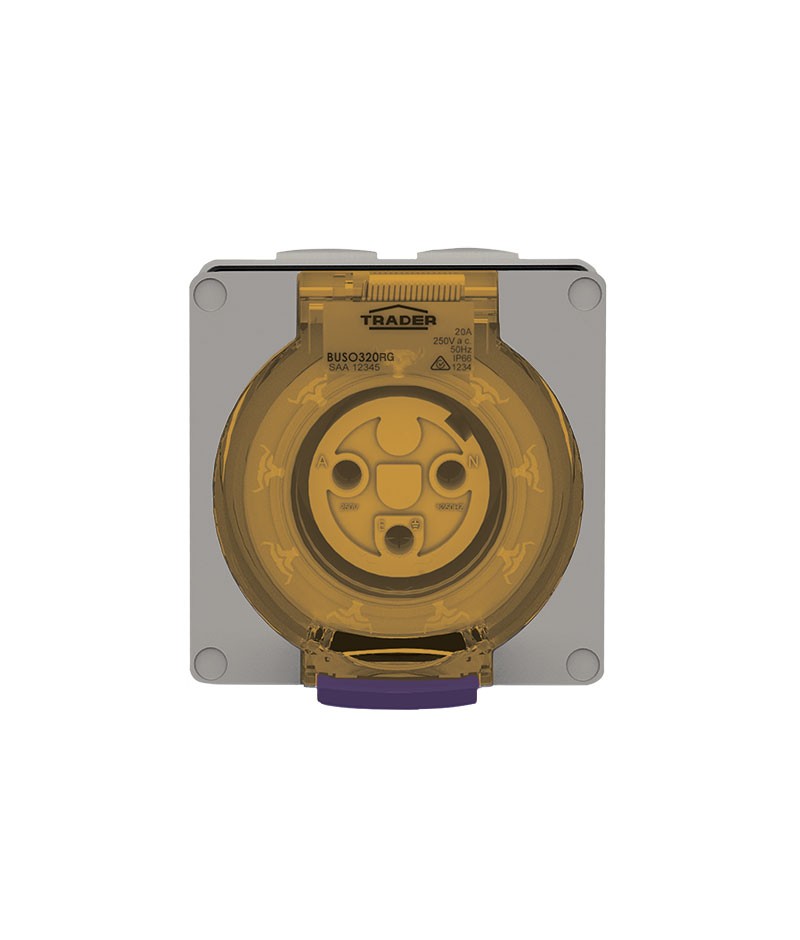

Socket Outlet IP66 20A 250V 3 Round Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 20A 250V capacity and 3 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo RG Switched Socket, Outdoor IP66 Switched Outlet, Chemical‑Resistant Socket Outlet
Technical Specifications
- Rated Current: 20 A
- Voltage: 250 V AC
- Pin Configuration: 3 round pins
- IP Rating: IP66
- Material: Chemical‑resistant housing

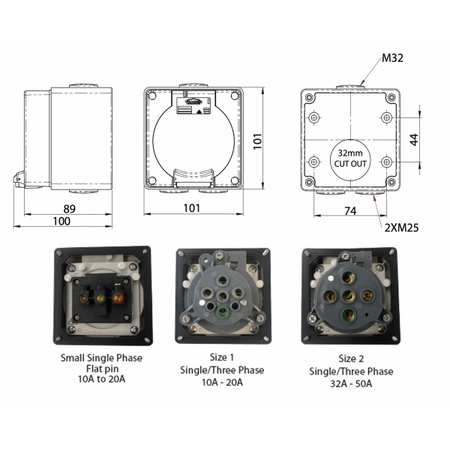

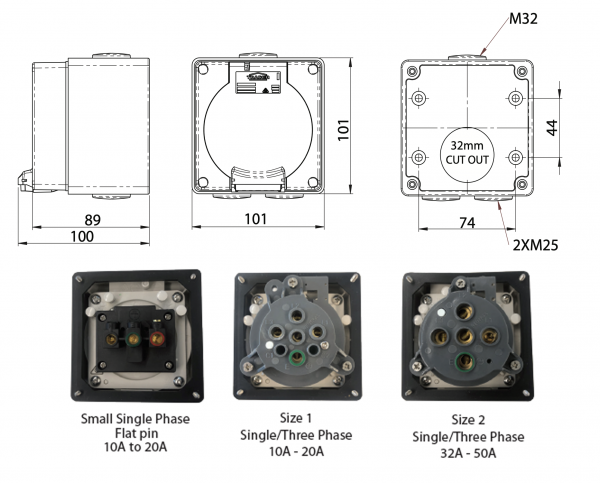

- Dimensions (H × L × W): 80 mm × 100 mm × 100 mm
- Weight: 1.0 kg
- Recommended Screw Torque – Corner Cover: 0.6 Nm
- Recommended Torque – Earth/Neutral Terminals: 2 Nm
- Recommended Torque – Switch Terminals: 2.5 Nm
- Dimensions (H x L x W): 80mm x 100mm x 100mm
- Weight: 1.0 kg
Key Features
- IP66-rated for superior protection against dust and high‑pressure water
- Chemical‑resistant construction suitable for alkaline or caustic environments
- Integral switched socket with factory‑fitted phase link and padlockable switch handle
- Clear spring‑loaded flap for dust‑ and hose‑proof protection, opening to 180°
- Threaded socket surround accepts plug lock rings for secure IP66 sealing
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure safety and compliance with AS/NZS electrical standards.
Applications
- Industrial facilities such as factories and warehouses
- Outdoor, wash‑down or chemical‑exposed environments
- Marinas, food processing or areas requiring robust weatherproof electrical outlets
Standards & Compliance
- Complies with relevant AS/NZS electrical safety standards (e.g. AS/NZS 3123 rounding pin socket-outlet system)
Environmental Benefits
- Durable chemical‑resistant design reduces replacement frequency, lowering waste
Warranty Information
1 year warranty against manufacturing defects (standard for Trader Buffalo chemical‑resistant sockets).
Available Now
Available through authorised Australian electrical wholesalers and distributors.
