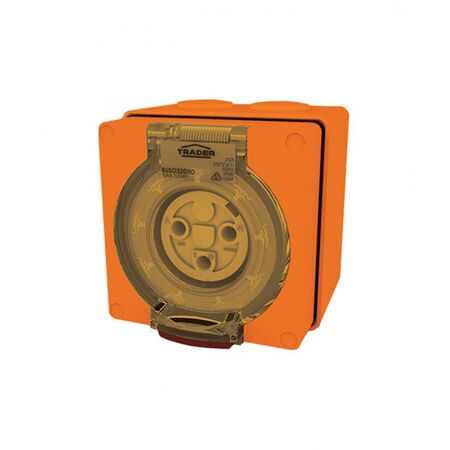

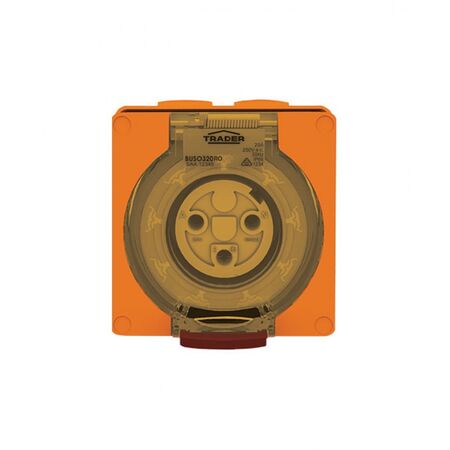

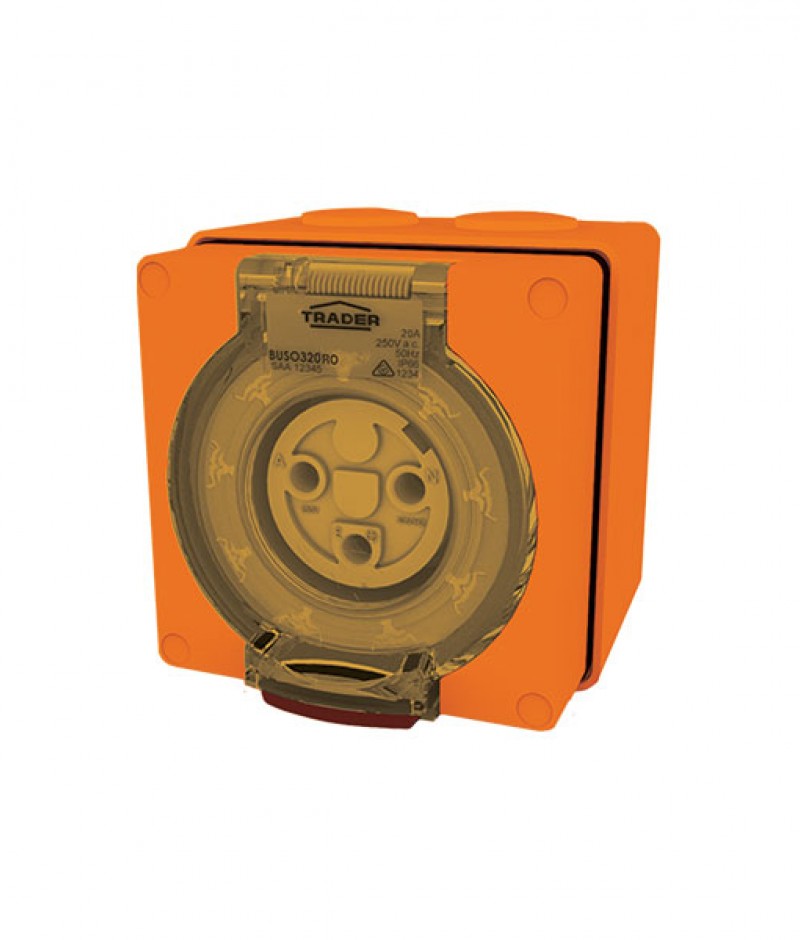

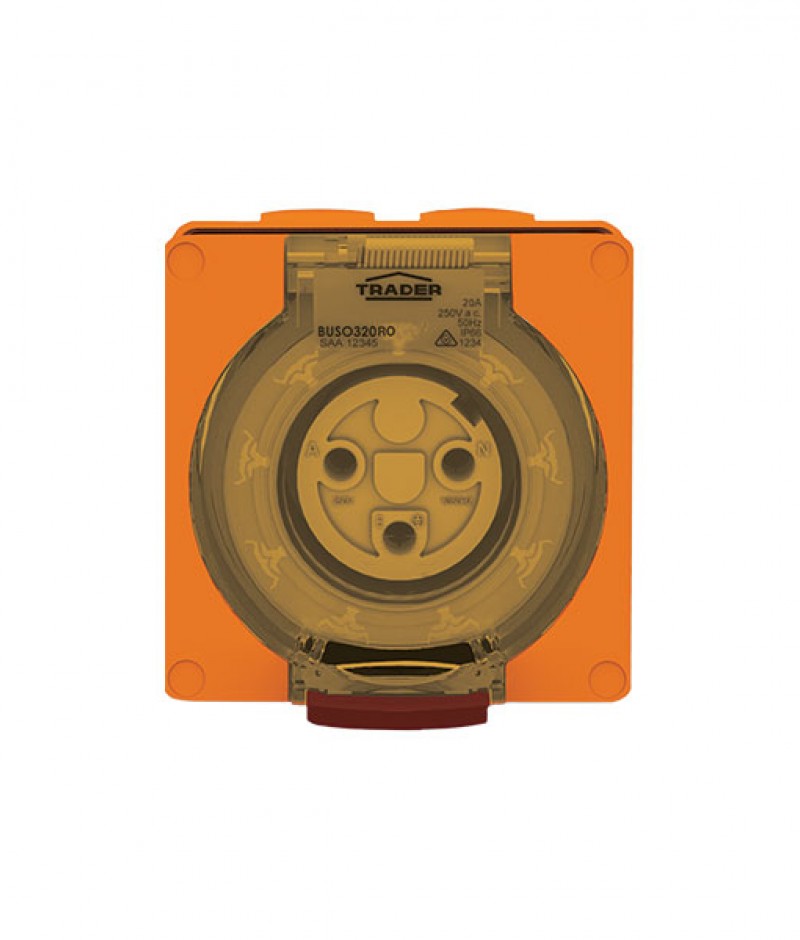

Socket Outlet IP66 20A 250V 3 Round Pin Buffalo Orange Trader
Trader socket outlet features IP66 weatherproof rating, 20A 250V capacity and 3 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Trader Buffalo 3‑Round‑Pin IP66 Socket, Industrial Weatherproof Socket
Technical Specifications
- Rated Current: 20 A
- Voltage: 250 V AC (50 Hz)
- Pin Configuration: 3‑round‑pin (1P + N + E)
- IP Rating: IP66
- Material: Chemical‑resistant polycarbonate (front), robust housing
- Operating Temperature: −25 °C to +75 °C
- Connection: Screw terminals 2.5–6 mm²
- Tightening Torque: 0.8 N·m

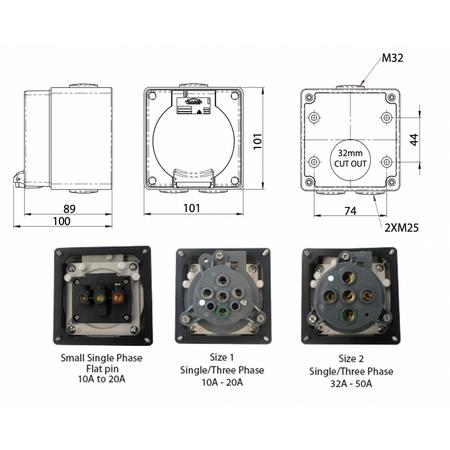

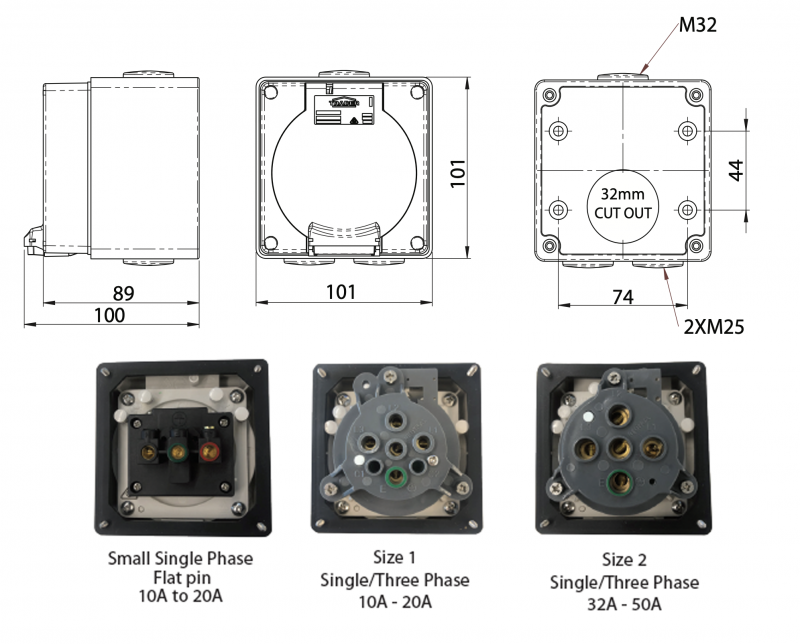

- Dimensions (H x L x W): 107mm x 77mm x 101mm
- Weight: 0.64 kg
Key Features
- Robust IP66‑rated enclosure for dust and high‑pressure water wash‑downs
- Chemical‑resistant construction suited to harsh industrial environments
- Recognised Buffalo design with hinged flap and locking ring to maintain ingress protection
- Compliant with common industrial plug systems (size‑1, 20 A, 3‑round‑pin)
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure safety and compliance with AS/NZS 3000 wiring rules.
Applications
- Industrial wash‑down areas (e.g. food processing, chemical plants)
- Outdoor construction and maintenance sites exposed to water and harsh conditions
- Any environment requiring durable, weather‑ and chemical‑resistant power outlets
Standards & Compliance
- Complies with AS/NZS 3112 (general socket‑outlet standard)
- Complies with AS/NZS 3123 (industrial plugs and socket‑outlets)
Environmental Benefits
- Chemical‑resistant and durable design reduces replacement frequency and waste
- PVC‑free materials (ABS/PC housing), aligning with reduced environmental impact
Warranty Information
10 year product warranty as per Trader/Buffalo general warranty policy.
Available Now
Available through authorised Australian electrical distributors and wholesalers.
